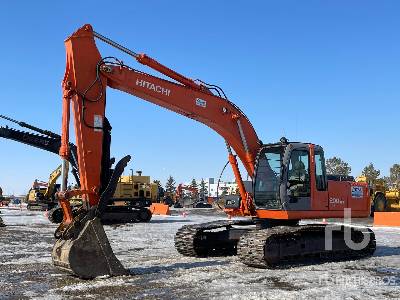

Hitachi ZX200LC Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

31.57ft in

C

Shipping Height of Unit

10.27ft in

I

Max Cutting Height

30.09ft in

J

Max Loading Height

20.97ft in

K

Max Reach Along Ground

29.79ft in

L

Max Vertical Wall Digging Depth

16.87ft in

M

Max Digging Depth

19.62ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

31.17ft in

C

Shipping Height of Unit

9.75ft in

I

Max Cutting Height

31.5ft in

J

Max Loading Height

22.25ft in

K

Max Reach Along Ground

31.99ft in

L

Max Vertical Wall Digging Depth

19.85ft in

M

Max Digging Depth

21.89ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

31.04ft in

C

Shipping Height of Unit

11.65ft in

I

Max Cutting Height

33.54ft in

J

Max Loading Height

24.32ft in

K

Max Reach Along Ground

36.42ft in

L

Max Vertical Wall Digging Depth

24.74ft in

M

Max Digging Depth

26.78ft in

Dimensions

B

Width to Outside of Tracks

9.81ft in

D

Length of Track on Ground

12.01ft in

E

Ground Clearance

1.48ft in

G

Height to Top of Cab

9.68ft in

H

Tail Swing Radius

9.03ft in

Undercarriage

F

Track Gauge

7.85ft in

N

Shoe Size

23.63in


Specifications

Engine

Number of Cylinders

6

Engine Make

2353

Engine Model

AA-6BGIT

Net Power

147hp

Power Measured @

2100rpm

Displacement

396.3cu in

Max Torque

405.7lb ft

Torque Measured @

1600rpm

Aspiration

turbocharged, intercooled

Operational

Operating Weight

43872lb

Fuel Capacity

95.2gal

Cooling System Fluid Capacity

6.1gal

Hydraulic System Fluid Capacity

52.9gal

Engine Oil Capacity

6.7gal

Swing Drive Fluid Capacity

1.7gal

Operating Voltage

24V

Alternator Supplied Amperage

50amps

Hydraulic System Relief Valve Pressure

4980psi

Hydraulic Pump Flow Capacity

102.5gal/min

Swing Mechanism

Swing Speed

13.3rpm

Undercarriage

Number of Shoes per Side

49

Shoe Size

23.7in

Number of Carrier Rollers per Side

2

Number of Track Rollers per Side

8

Ground Pressure

6psi

Max Travel Speed

3.5mph

Track Gauge

7.9ft in

Buckets

Reference Bucket Capacity

1.1yd3

Minimum Bucket Capacity

0.7yd3

Maximum Bucket Capacity

1.2yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

boom 5680mm w/ stick 2220mm

Shipping Height of Unit

10.3ft in

Shipping Length of Unit

31.6ft in

Max Digging Depth

19.7ft in

Max Reach Along Ground

29.8ft in

Max Cutting Height

30.1ft in

Max Loading Height

21ft in

Max Vertical Wall Digging Depth

16.9ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

boom 5680mm w/ stick 2910mm

Shipping Height of Unit

9.8ft in

Shipping Length of Unit

31.2ft in

Max Digging Depth

21.9ft in

Max Reach Along Ground

32ft in

Max Cutting Height

31.5ft in

Max Loading Height

22.3ft in

Max Vertical Wall Digging Depth

19.9ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

boom 5680mm w/ stick 4410mm

Shipping Height of Unit

11.7ft in

Shipping Length of Unit

31.1ft in

Max Digging Depth

26.8ft in

Max Reach Along Ground

36.5ft in

Max Cutting Height

33.6ft in

Max Loading Height

24.4ft in

Max Vertical Wall Digging Depth

24.8ft in

Dimensions

Width to Outside of Tracks

9.9ft in

Height to Top of Cab

9.7ft in

Ground Clearance

1.5ft in

Removal Counterweight Clearance

3.4ft in

Tail Swing Radius

9.1ft in

Length of Track on Ground

12.1ft in
