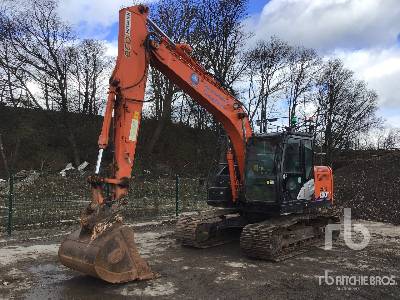

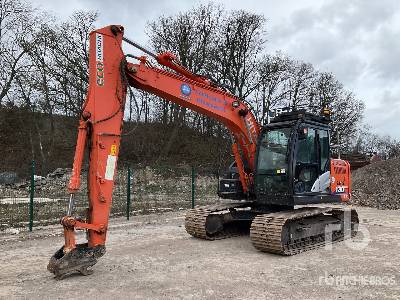

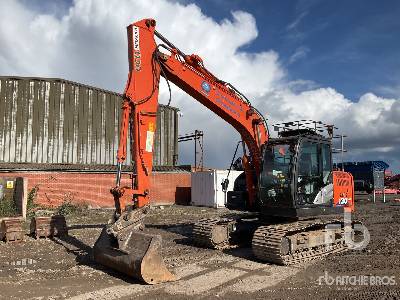

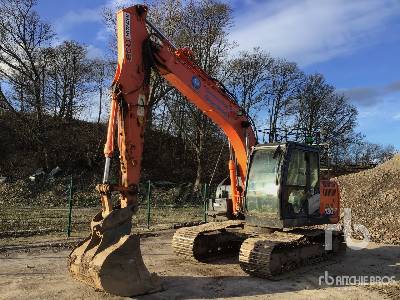

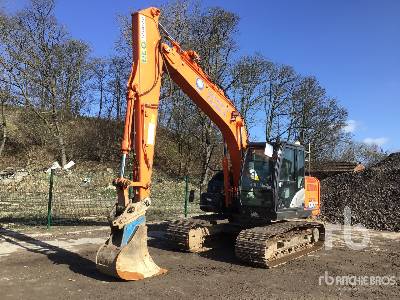

Hitachi ZX130-6 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
I
Max Cutting Height
28.3ft in
K
Max Reach Along Ground
26.11ft in
L
Max Vertical Wall Digging Depth
16.61ft in
M
Max Digging Depth
18.3ft in
Arm Digging Force - Iso
15476lb
Arm Digging Force - Sae
14991lb
Bucket Digging Force - Iso
23435lb
Bucket Digging Force - Sae
20525lb
Max.Dumping Height
20.4ft in
Dimensions
E
Ground Clearance
1.35ft in
H
Tail Swing Radius
7.2ft in
F
Track Gauge
6.6ft in
O
Counterweight Clearance
2.76ft in
Overall Length
25.4ft in
Overall Width
10.6in
Overall Height
9ft in
Center To Center – Idler To Sprocket
9.5ft in
Cab Height
10.99in
Undercarriage Overall Length
11.9ft in
Undercarriage
Drawbar Pull
24729lb
Track Adjustment
Hydraulic
Number Of Track Rollers Per Side
7
Number Of Carrier Rollers Per Side
1
Specifications
Engine
Emission Tier Level
EPA Final Tier 4
Battery
2
Number Of Cylinders
4
Off-Level Capacity
70%
Engine Model
4JJ1
Net Power
101hp
Power Measured @
2000rpm
Aspiration
Turbocharged and charged air cooled
Displacement
183.1cu in
Alternator
50amps
Operational
Propel Gearbox (Each)
1.1gal
Swing Gearbox
0.9gal
Fuel Capacity
75.3gal
Cooling System Fluid Capacity
5.6gal
Engine Oil Capacity
4.5gal
Hydraulic System Relief Valve Pressure
26.9psi
Hydraulic Pump Flow Capacity
18.3gal/min
Performance
Travel Speed Low
2.1mph
Travel Speed - High
3.5mph
Swing Mechanism
Swing Speed
13.3rpm
Swing Torque
25077.2lb ft
Blade
Transport Height
9.5ft in
Blade Lift Height
20.6in
Blade Cut Below Grade
19.3in
Blade Lift Angle
27degrees
Hydraulic System
Pilot Pump - Maximum Flow
27.8gal/min
Max. Pressure Setting
570psi
Implement - Operating Pressure
4980psi
Travel - Operating Pressure
4980psi
Swing - Operating Pressure
4685psi
Power Boost - Operating Pressure
5265psi
Controls
Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever
Blade
Blade Length
8.3ft in
Blade Width
8.5ft in
Blade Height
20.6in
