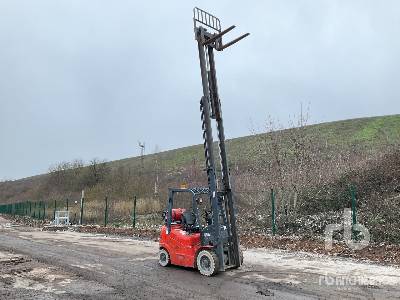

HeLi CPQ30 Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
8.78ft in
B
Overall Width
4.02ft in
C
Overall Height - Mast Lowered
6.91ft in
D
Wheelbase
5.58ft in
E
Ground Clearance
5.52in
F
Height To Top Of Overhead Guard
6.86ft in
G
Max Fork Height
9.85ft in
Right Angle Stack
6.93ft in
Turning Radius
7.88ft in
Mast
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
12degrees
Load Capacity
6613.87lb
Max Fork Spread
40.16in
Load Center
19.69in
Lift Speed
98.43ft/min
Specifications
Engine
Engine Make
2311
Engine Model
H25
Power
57.3hp
Torque
132.1lb ft
Power Measured @
2300rpm
Torque Measured @
1600rpm
Fuel Type
gasoline
Operational
Operating Weight
9325.6lb
Tire Type
front 28x9-15-12PR rear 6.50-10-10PR
Number Of Front Wheels
2
Number Of Rear Wheels
2
Max Speed
11.2mph
