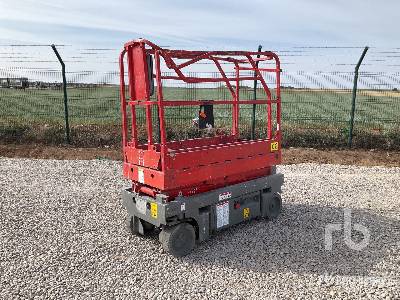

Haulotte Optimum 6 Scissor Lift

Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Scissor Lift
Units

Dimensions

Dimensions

A

Overall Length

5.68in

D

Wheelbase

4.53ft in

B

Overall Width

2.5ft in

C

Height W/ Rails

6.27ft in

E

Ground Clearance

3.15in

Height W/O Rails

2.63ft in

Turning Radius

5.58ft in

Platform

F

Max Platform Height

14.6ft in

I

Deck Extension

36.23in

Max Working Height

21.17ft in

Max Platform Weight Capacity

617.3lb

Platform Inner Length

64.97in

Platform Inner Width

27.56in

Lower Time

35sec

Lift Time

20sec


Specifications

Engine

System Voltage

24V

Number Of Batteries

4

Battery Amp Hours

180

Charger Amps

30amps

Operational

Operating Weight

2943.2lb

Hydraulic System Fluid Capacity

4.8gal

Max Speed

2.9mph

Tire Size

Dia 317

Tire Fill/Type

Solid/non marking


Compare similar models

Manufacturer/Model

Max Platform Weight Capacity

Max Working Height

Operating Weight

Max Platform Weight Capacity

500.5 lb

Max Working Height

--

Operating Weight

2945.4 lb

Max Platform Weight Capacity

500.5 lb

Max Working Height

25 ft in

Operating Weight

2956.4 lb

Max Platform Weight Capacity

595 lb

Max Working Height

20.6 ft in

Operating Weight

2944 lb

Find Haulotte Optimum 6 Scissor Lift for Sale

`
