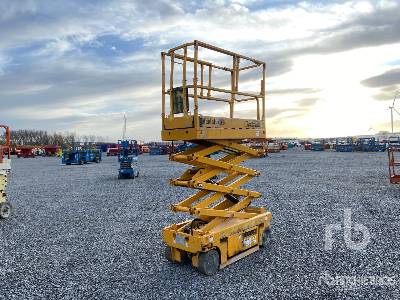

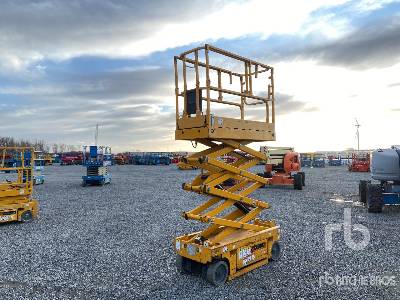

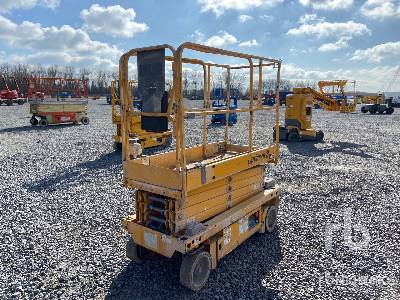

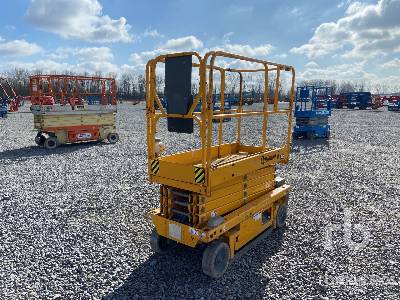

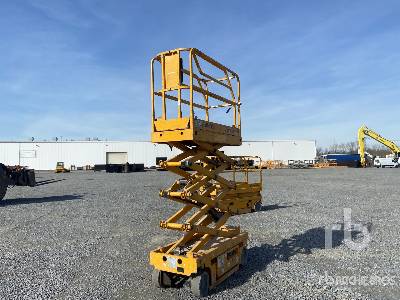

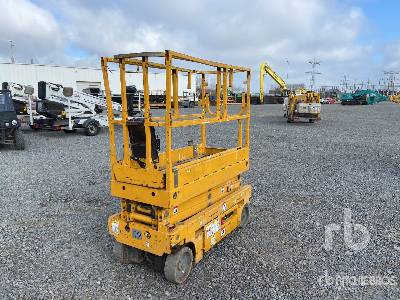

Haulotte Optimum 1530E Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
6.17in
D
Wheelbase
4.5ft in
B
Overall Width
2.5ft in
C
Height W/ Rails
6.25ft in
E
Ground Clearance
3in
Height W/O Rails
2.58ft in
Turning Radius
5.58ft in
Platform
F
Max Platform Height
14.58ft in
I
Deck Extension
36in
Max Working Height
20.58ft in
Max Platform Weight Capacity
595lb
Platform Inner Length
5.67in
Platform Inner Width
2.25in
Lower Time
35sec
Lift Time
20sec
Specifications
Engine
Engine Make
0
System Voltage
24V
Battery Amp Hours
225
Operational
Operating Weight
2944lb
Hydraulic System Fluid Capacity
5.3gal
Max Speed
2.8mph
Tire Size
12.5x4.25
Tire Fill/Type
Solid, non-marking
