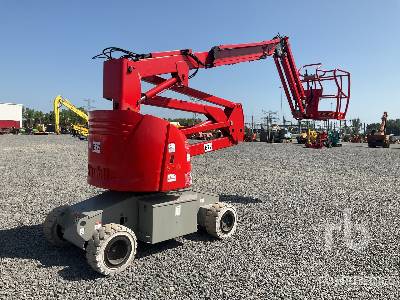

Haulotte HA15IP Boom Lift

Haulotte HA15IP Boom Lift Specs side
Haulotte HA15IP Boom Lift Specs side
Haulotte HA15IP Boom Lift Specs back
Haulotte HA15IP Boom Lift Specs back
Haulotte HA15IP Boom Lift Specs extended
Haulotte HA15IP Boom Lift Specs extended
Units

Dimensions

Dimensions

A

Overall Length

21.66 in

B

Overall Width

4.93 ft in

C

Overall Height - mast lowered

6.57 ft in

D

Wheelbase

6.57 ft in

E

Ground Clearance

5.91 in

Platform

F

Max Platform Height

42.66 ft in

G

Max Horizontal Reach

27.73 ft in


Specifications

Engine

Engine Make

0

System Voltage

48 V

Battery Amp Hours

360.0000

Charger Amps

50 amps

Operational

Operating Weight

16093.8 lb

Hydraulic System Fluid Capacity

13.3 gal

Max Speed

2.8 mph

Tire Size

23x10x12

Tire Fill/Type

non marking

Platform

Max Working Height

49.3 ft in

Max Platform Height

42.7 ft in

Max Horizontal Reach

27.8 ft in

Max Platform Weight Capacity

507.1 lb

Platform Inner Length

47.3 in

Platform Inner Width

31.5 in

Platform Rotation

180 degrees

Dimensions

Wheelbase

6.6 ft in

Overall Length

21.7 in

Overall Width

5 ft in

Overall Height - mast lowered

6.6 ft in

Turning Radius

12.2 ft in

Ground Clearance

6 in
