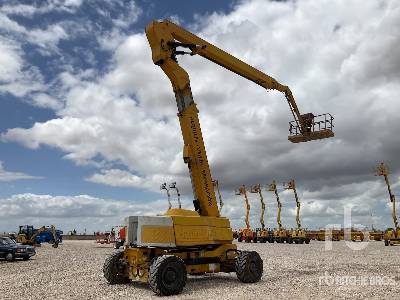

Haulotte H16TPX Boom Lift

Haulotte H16TPX Boom Lift Specs side
Haulotte H16TPX Boom Lift Specs side
Haulotte H16TPX Boom Lift Specs back
Haulotte H16TPX Boom Lift Specs back
Haulotte H16TPX Boom Lift Specs extended
Haulotte H16TPX Boom Lift Specs extended
Units

Dimensions

Dimensions

A

Overall Length

27.63 in

B

Overall Width

7.55 ft in

C

Overall Height - mast lowered

7.26 ft in

D

Wheelbase

6.57 ft in

E

Ground Clearance

13.78 in

Platform

F

Max Platform Height

44.1 ft in

G

Max Horizontal Reach

40.36 ft in


Specifications

Engine

Engine Make

2349

Gross Power

41.6 hp

Fuel Type

Diesel

Operational

Operating Weight

14660.8 lb

Fuel Capacity

39.7 gal

Hydraulic System Fluid Capacity

39.7 gal

Max Speed

3.8 mph

Tire Size

14-17.5

Tire Fill/Type

foam filled/Sks Hauler

Platform

Max Working Height

50.7 ft in

Max Platform Height

44.1 ft in

Max Horizontal Reach

40.4 ft in

Max Platform Weight Capacity

507.1 lb

Platform Inner Length

70.9 in

Platform Inner Width

31.5 in

Platform Rotation

180 degrees

Dimensions

Wheelbase

6.6 ft in

Overall Length

27.7 in

Overall Width

7.6 ft in

Overall Height - mast lowered

7.3 ft in

Turning Radius

15.8 ft in

Ground Clearance

13.8 in
