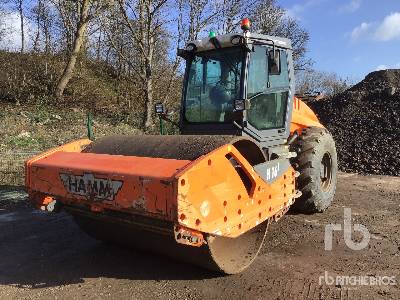

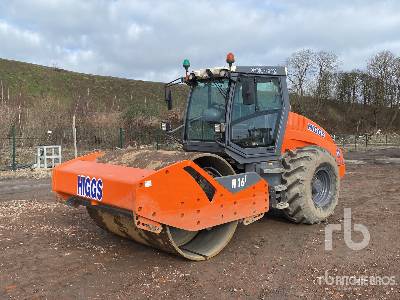

Hamm H16i Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
234.26in
C
Height To Top Of Cab
9.72ft in
D
Wheelbase
124.02in
E
Ground Clearance
15.36in
Angle Of Driving Slope-Front
53degrees
Width Over Cab
91.11in
Angle Of Driving Slope-Rear
32degrees
Loadover Height
7.58ft in
Turning Radius - Inside
12.7ft in
Specifications
Steering System
Oscillating Angle
10degrees
Steering Method
Articulated steering
Speeds
Size Of Tyres, Rear
AW 23.1-26 12 PR
Engine
Emissions Certification
EU Stage IV / EPA Tier 4
Diesel Fuel Tank Capacity - Standard Tank
8.5gal
Exhaust Gas Recirculation (Egr)
DOC-DPF-SCR
Engine Power@Iso 14396
154.3hp
Engine Power@Saej1349
154.3hp
Number Of Cylinders
4
Engine Make
Deutz
Engine Model
TCD 4.1 L4
Power Measured @
2300rpm
Operational
Operating Weight Cabin
36222lb
Operating Weight Rops
35803.1lb
Fuel Capacity
74gal
Max Weight
42857.9lb
Max Speed
10mph
Axle Load - Front
23578.5lb
Axle Load - Rear
12643.6lb
Drum
Drum Type
smooth
Drum Thickness
1.8in
Drum Width
84.3in
Drum Diameter
59.3in
Static Linear Load
503lb/in
Vibration Frequency 1
28Hz
Nominal Amplitude - High
0.1in
Vibration Frequency 2
31Hz
Nominal Amplitude - Low
0.1in
Centrifugal Force - High
73737.4lb
Centrifugal Force - Low
58225.6lb
