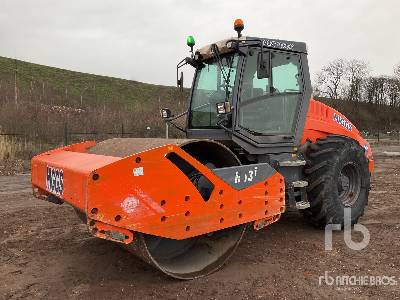

Hamm H13i Vibratory Smooth Drum Roller

Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Units

Dimensions

Dimensions

A

Overall Length

230.32in

C

Height to Top of Cab

9.72ft in

D

Wheelbase

124.02in

E

Ground Clearance

15.36in


Specifications

Steering System

Steering Method

Articulated steering

Oscillating angle

10degrees

speeds

Climbing ability -y, vibration on/off

Size of tyres, rear

AW 23.1-26 12 PR

Engine

Emissions Certification

EU Stage IIIB / EPA Tier 4

Diesel Fuel Tank Capacity - Standard Tank

8.5gal

Exhaust Gas Recirculation (EGR)

DOC-SCR

Engine power@ISO 14396

154.3hp

Engine power@SAEJ1349

154.3hp

Number of Cylinders

4

Engine Make

Deutz

Engine Model

TCD 3.6 L4

Power Measured @

2300rpm

Operational

Operating weight Cabin

28351.5lb

Operating weight ROPS

27778.3lb

Fuel Capacity

74gal

Max Weight

34987.4lb

Max Speed

12mph

Axle load - front

15685.9lb

Axle load - rear

12665.6lb

Drum

Drum thickness

1.2in

Drum Type

smooth

Drum Width

84.3in

Drum Diameter

59.3in

Static Linear Load

186lb/in

Vibration Frequency 1

30Hz

Nominal Amplitude - High

0.1in

Nominal Amplitude - Low

0.1in

Centrifugal Force - High

55977.5lb

Centrifugal Force - Low

37318.3lb

Vibration Frequency 2

36Hz

Dimensions

Loadover height

7.6ft in

Wheelbase

124.1in

Width over cab

90in

Turning Radius - Inside

12.7ft in

Overall Length

230.4in

Height to Top of Cab

9.8ft in

Ground Clearance

15.4in

Angle of driving slope-Front

53degrees

Angle of driving slope-Rear

32degrees
