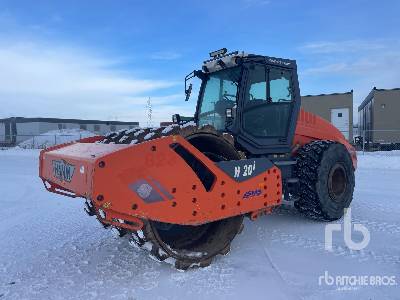

Hamm 3518 HT P Vibratory Compactor

Vibratory Compactor
Vibratory Compactor
Vibratory Compactor
Vibratory Compactor
Vibratory Compactor
Vibratory Compactor
Units

Dimensions

Dimensions

C

Height To Top Of Cab

10.01ft in

D

Wheelbase

124.61in

E

Ground Clearance

16.74in

Turning Radius - Inside

13.72ft in

Overall Width

7.85ft in

Overall Length

20.38ft in

Drum

F

Drum Diameter

70.24in

Pad Height

3.94in

Vibration Frequency 1

27Hz

Vibratory Frequency 2

30Hz

Nominal Amplitude - Low

0.05in

Centrifugal Force - Low

54628.57lb

Drum Thickness

1.38in

Drum Width

87.41in

Nominal Amplitude - High

0.08in

Centrifugal Force - High

74411.76lb

Number Of Pads

150


Specifications

Engine

Emissions Level

EU Stage IIIA / EPA Tier 3

Number Of Cylinders

6

Engine Make

DEUTZ

Engine Model

TCD 2012 L06

Gross Power

207.9hp

Net Power

207.9hp

Power Measured @

2300rpm

Operational

Smooth Drum Operating Weight With Cab

39738.4lb

Operating Weight Rops

39253.4lb

Oscillating Angle

10degrees

Operating Weight

43563.4lb

Fuel Capacity

76.7gal

Max Speed

8.1mph

Tires

TR 23.1-26 12 PR
