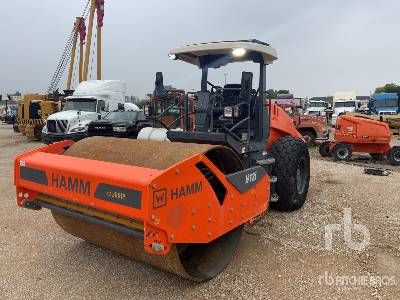

Hamm 3516 Vibratory Smooth Drum Roller

Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
Vibratory Smooth Drum Roller
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

239.18in

C

Height To Top Of Cab

9.91ft in

D

Wheelbase

121.66in

E

Ground Clearance

14.77in

Angle Of Driving Slope-Front

31degrees

Width Over Cab

88.59in

Angle Of Driving Slope-Rear

27degrees

Loadover Height

7.52ft in

Turning Radius - Inside

14.31ft in


Specifications

Steering System

Steering Method

Articulated steering

Oscillating Angle

10degrees

Speeds

Speed - Working Gear

9mph

Speed - Transportation Gear

11mph

Size Of Tyres, Rear

AW 23.1-26 12 PR

Engine

Emissions Certification

EU Stage IIIA / EPA Tier 3

Engine Power@Iso 14396

207.9hp

Engine Power@Saej1349

207.9hp

Number Of Cylinders

4

Engine Make

Deutz

Engine Model

TCD 2012 L04 2V

Power Measured @

2300rpm

Operational

Operating Weight Cabin

34733.9lb

Operating Weight Rops

34248.9lb

Fuel Capacity

76.7gal

Max Weight

41469lb

Axle Load - Front

20514.1lb

Axle Load - Rear

14219.9lb

Drum

Drum Thickness

1.2in

Drum Type

smooth

Drum Width

84.3in

Drum Diameter

59.3in

Static Linear Load

435lb/in

Vibration Frequency 1

30Hz

Nominal Amplitude - High

0.1in

Vibration Frequency 2

40Hz

Nominal Amplitude - Low

0.1in

Centrifugal Force - High

57551.1lb

Centrifugal Force - Low

48334lb
