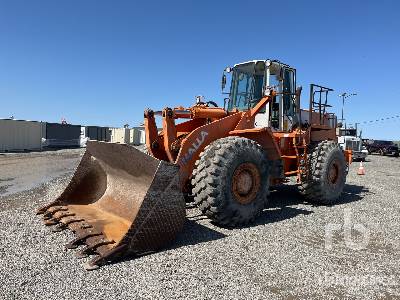

Halla HA170 Wheel Loader

Halla HA170 Wheel Loader Specs front
Halla HA170 Wheel Loader Specs front
Halla HA170 Wheel Loader Specs side
Halla HA170 Wheel Loader Specs side
Halla HA170 Wheel Loader Specs back
Halla HA170 Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.37 ft in

Dimensions

A

Length with Bucket on Ground

21.2 ft in

C

Height to Top of Cab

10.27 ft in

D

Wheelbase

8.7 ft in

E

Ground Clearance

1.2 ft in

H

Reach at Max Lift and Dump

3.15 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

6BT5.9C

Net Power

127 hp

Power Measured @

2200 rpm

Displacement

360.1 cu in

Torque Measured @

1400 rpm

Max Torque

371

Aspiration

turbocharged

Operational

Operating Weight

21384.9 lb

Fuel Capacity

59.5 gal

Hydraulic System Fluid Capacity

21.2 gal

Engine Oil Fluid Capacity

4.4 gal

Cooling System Fluid Capacity

11.4 gal

Transmission Fluid Capacity

7.2 gal

Front Axle/Diff Fluid Capacity

4.9 gal

Rear Axle/Diff Fluid Capacity

4.9 gal

Static Tipping Weight

19389.7 lb

Turning Radius

15.1 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

70 amps

Rear Axle Oscillation

28 degrees

Tire Size

17.5x25 12PR

Transmission

Transmission Type

full powershift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - Forward

22.7 mph

Max Speed - Reverse

14.3 mph

Hydraulic System

Pump Type

closed with pressure & vacuum relief pump vane type

Relief Valve Setting

2957

Pump Flow Capacity

45 gal/min

Raise Time

5.4 sec

Dump Time

1.5 sec

Lower Time

2.3 sec

Bucket

Breakout Force

20417 lb

Dump Clearance at Max Raise

8.4 ft in

Bucket Width

8 ft in

Bucket Capacity - heaped

2.3 yd3

Dimensions

Length with Bucket on Ground

21.2 ft in

Height to Top of Cab

10.3 ft in

Ground Clearance

1.2 ft in

Wheelbase

8.7 ft in

Reach at Max Lift and Dump

3.2 ft in
