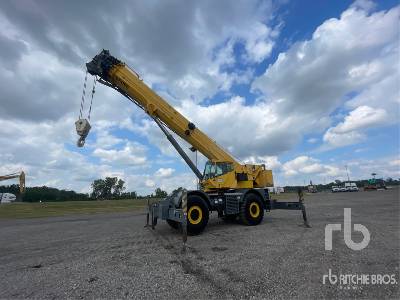

Grove RT65S Rough Terrain Crane

Grove RT65S Rough Terrain Crane Specs front
Grove RT65S Rough Terrain Crane Specs front
Grove RT65S Rough Terrain Crane Specs side
Grove RT65S Rough Terrain Crane Specs side
Grove RT65S Rough Terrain Crane Specs extended
Grove RT65S Rough Terrain Crane Specs extended
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

33 ft in

J

Max Height @ Max Raise Angle - no jib

112 ft in

K

Min Operating Radius

3 ft in

L

Max Operating Radius

26 ft in

M

Max Elevating Angle

76 degrees

Dimensions

A

Transport Length

41.18 ft in

B

Transport Width

10.24 ft in

C

Transport Height

11.85 ft in

D

Wheelbase

12.5 in

E

Ground Clearance

1.59 ft in

F

Width w/ Outriggers Extended

23 ft in

G

Carrier/Base Length

36.26 ft in

H

Upper Structure Tail Swing Radius

13.49 ft in


Specifications

Engine

Engine Make

2350

Engine Model

6V-53N

Air cleaner

Full Flow

Net Power

173 hp

Power Measured @

2500 rpm

Max Torque

396 lb ft

Torque Measured @

1500 rpm

Displacement

318 cu in

Operational

Operating Weight

67250 lb

Fuel Capacity

60 gal

Hydraulic System Fluid Capacity

133 gal

Operating Voltage

24 V

Alternator Supplied Amperage

60 amps

Tire Size

21.00X25-24ply

Transmission

Transmission Type

remote mounted full powershift

Number of Forward Gears

6

Number of Reverse Gears

6

Max Speed - Forward

21.8 mph

Boom

Number of Sections

4

Min Height @ Max Raise Angle

33 ft in

Max Height @ Max Raise Angle - no jib

112 ft in

Max Elevating Angle

76 degrees

Max Lift Capacity

30000 lb

Swing Speed

2.6 rpm

Min Operating Radius

3 ft in

Max Operating Radius

26 ft in

Dimensions

Transport Length

41.2 ft in

Transport Width

10.3 ft in

Transport Height

11.9 ft in

Ground Clearance

1.6 ft in

Wheelbase

12.5 in

Width w/ Outriggers Extended

23 ft in

Carrier/Base Length

36.3 ft in

Upper Structure Tail Swing Radius

13.5 ft in
