Grove RT515 Rough Terrain Crane

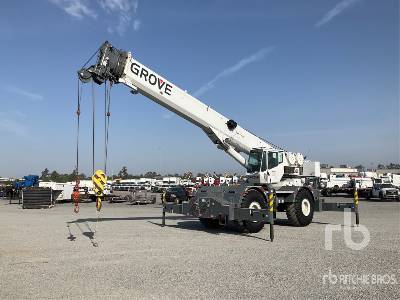

Grove RT515 Rough Terrain Crane Specs front

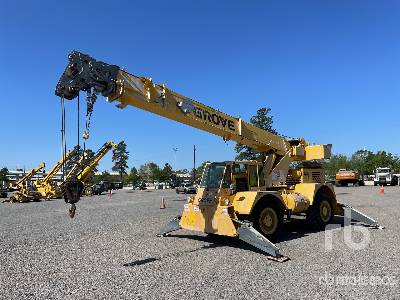

Grove RT515 Rough Terrain Crane Specs front

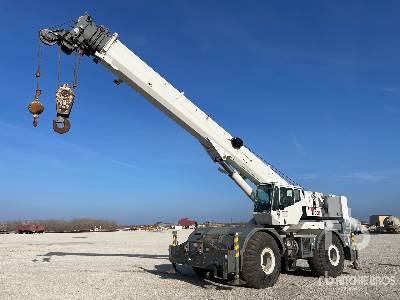

Grove RT515 Rough Terrain Crane Specs side

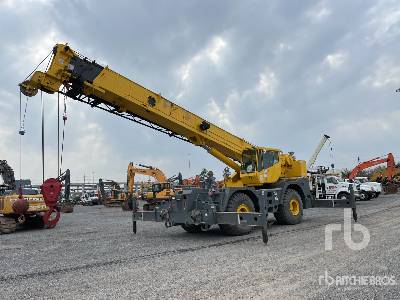

Grove RT515 Rough Terrain Crane Specs side

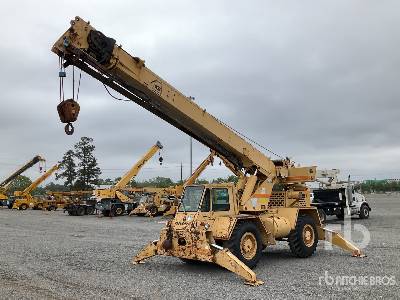

Grove RT515 Rough Terrain Crane Specs extended

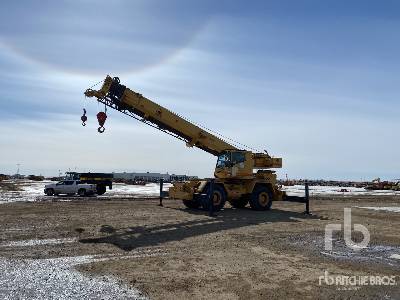

Grove RT515 Rough Terrain Crane Specs extended
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

24 ft in

J

Max Height @ Max Raise Angle - no jib

42 ft in

K

Min Operating Radius

12 ft in

L

Max Operating Radius

35 ft in

M

Max Elevating Angle

75 degrees

Dimensions

A

Transport Length

32.38 ft in

B

Transport Width

8 ft in

C

Transport Height

10.64 ft in

D

Wheelbase

10.09 in

E

Ground Clearance

1.39 ft in

F

Width w/ Outriggers Extended

18.38 ft in

G

Carrier/Base Length

20 ft in

H

Upper Structure Tail Swing Radius

8.51 ft in


Specifications

Engine

Engine Make

2350

Engine Model

4-53N

Net Power

115 hp

Power Measured @

2800 rpm

Max Torque

246 lb ft

Torque Measured @

1800 rpm

Displacement

212 cu in

Operational

Operating Weight

41874 lb

Fuel Capacity

60 gal

Hydraulic System Fluid Capacity

88 gal

Cooling System Fluid Capacity

9.4 gal

Operating Voltage

24 V

Alternator Supplied Amperage

90 amps

Tire Size

14.00X24

Transmission

Transmission Type

remote full powershift

Number of Forward Gears

6

Number of Reverse Gears

6

Max Speed - Forward

24.2 mph

Boom

Number of Sections

2

Min Height @ Max Raise Angle

24 ft in

Max Height @ Max Raise Angle - no jib

42 ft in

Max Elevating Angle

75 degrees

Max Lift Capacity

30000 lb

Swing Speed

3.3 rpm

Min Operating Radius

12 ft in

Max Operating Radius

35 ft in

Dimensions

Transport Length

32.4 ft in

Transport Width

8 ft in

Transport Height

10.7 ft in

Ground Clearance

1.4 ft in

Wheelbase

10.1 in

Width w/ Outriggers Extended

18.4 ft in

Carrier/Base Length

20 ft in

Upper Structure Tail Swing Radius

8.6 ft in
