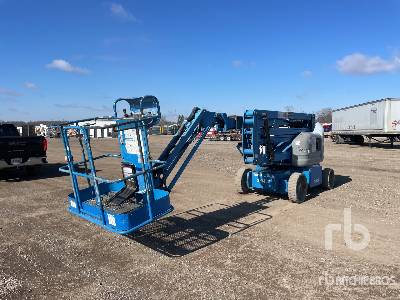

Genie Z40/23N Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
21.43in
B
Overall Width
4.93ft in
C
Overall Height - Mast Lowered
6.5ft in
D
Wheelbase
6.44ft in
E
Ground Clearance
7.09in
Turning Radius
10.5ft in
Platform
F
Max Platform Height
40.42ft in
G
Max Horizontal Reach
22.68ft in
Platform Rotation
180degrees
Platform Inner Length
55.91in
Max Platform Weight Capacity
500.45lb
Max Working Height
46.99ft in
Platform Inner Width
29.93in
Specifications
Engine
Engine Make
0
System Voltage
48V
Number Of Batteries
8
Battery Amp Hours
315
Operational
Operating Weight
15229.6lb
Hydraulic System Fluid Capacity
8gal
Max Speed
4.5mph
Tire Size
front: 22x7x17.75, rear: 25.6x7
Tire Fill/Type
Solid, non-marking
