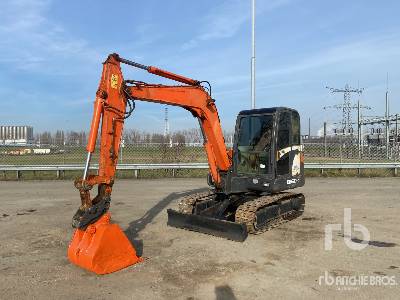

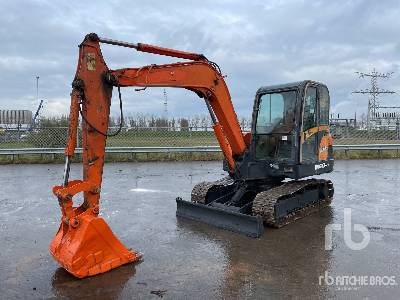

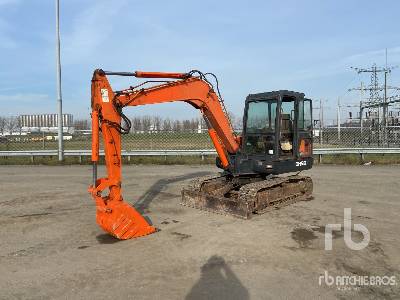

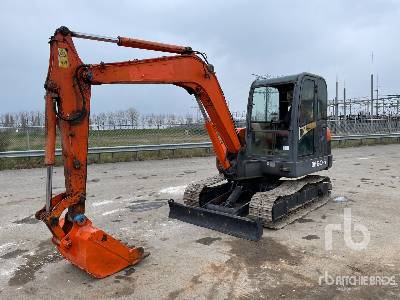

Doosan DX27Z Mini Excavator

Doosan DX27Z Mini Excavator Specs front
Doosan DX27Z Mini Excavator Specs front
Doosan DX27Z Mini Excavator Specs side
Doosan DX27Z Mini Excavator Specs side
Doosan DX27Z Mini Excavator Specs extended
Doosan DX27Z Mini Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

13.33 ft in

C

Shipping Height of Unit

4.89 ft in

I

Max Cutting Height

13.67 ft in

J

Max Loading Height

9.11 ft in

L

Max Vertical Wall Digging Depth

7.53 ft in

M

Max Digging Depth

8.17 ft in

Boom/Stick Option (HEX) 2

I

Max Cutting Height

14.05 ft in

J

Max Loading Height

9.63 ft in

L

Max Vertical Wall Digging Depth

8.21 ft in

M

Max Digging Depth

8.83 ft in

Dimensions

B

Width to Outside of Tracks

5.16 ft in

D

Length of Track on Ground

5.09 ft in

E

Ground Clearance

0.94 ft in

G

Height to Top of Cab

8.03 ft in

H

Tail Swing Radius

2.5 ft in

Undercarriage

F

Track Gauge

4.17 ft in

N

Shoe Size

11.82 in


Specifications

Engine

Number of Cylinders

3

Engine Make

2348

Engine Model

ETNV82A-SDB

Net Power

21.2 hp

Power Measured @

2200 rpm

Displacement

81.3 cu in

Max Torque

64.9 lb ft

Torque Measured @

1000 rpm

Operational

Operating Weight

6150 lb

Fuel Capacity

8 gal

Cooling System Fluid Capacity

1 gal

Hydraulic System Fluid Capacity

11.9 gal

Engine Oil Capacity

1.5 gal

Operating Voltage

12 V

Alternator Supplied Amperage

40 amps

Hydraulic System Relief Valve Pressure

3118.4 psi

Hydraulic Pump Flow Capacity

14 gal/min

Swing Mechanism

Swing Speed

9.7 rpm

Undercarriage

Shoe Size

11.9 in

Number of Track Rollers per Side

3

Ground Pressure

3.7 psi

Max Travel Speed

2.7 mph

Track Gauge

4.2 ft in

Buckets

Reference Bucket Capacity

0.2 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Boom 6'7" (2000mm)/Stick 3'7" (1100mm)

Shipping Height of Unit

4.9 ft in

Shipping Length of Unit

13.4 ft in

Max Digging Depth

8.2 ft in

Max Cutting Height

13.7 ft in

Max Loading Height

9.2 ft in

Max Vertical Wall Digging Depth

7.6 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Boom 6'7" (2000mm)/Stick 4'3" (1300mm)

Max Digging Depth

8.9 ft in

Max Cutting Height

14.1 ft in

Max Loading Height

9.7 ft in

Max Vertical Wall Digging Depth

8.3 ft in

Dimensions

Width to Outside of Tracks

5.2 ft in

Height to Top of Cab

8.1 ft in

Ground Clearance

1 ft in

Removal Counterweight Clearance

1.8 ft in

Tail Swing Radius

2.5 ft in

Length of Track on Ground

5.1 ft in
