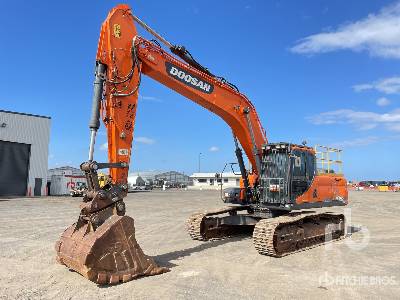

Doosan DX140LC-5 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
25.07ft in
C
Shipping Height Of Unit
10.06ft in
J
Max Loading Height
21.13ft in
L
Max Vertical Wall Digging Depth
15.38ft in
M
Max Digging Depth
20.13ft in
Boom/Stick Option (Hex) 1
Boom 15\'1\"(4600 mm)/Arm 9\'10\"(3000mm)
Max Digging Height
28.7ft in
Max Digging Reach
28.4ft in
Min Digging Reach
0.74ft in
Minimum Swing Radius
103.35in
Dimensions
H
Tail Swing Radius
7.24ft in
O
Counterweight Clearance
2.94ft in
Track Shoe Width
1.97ft in
Undercarriage Width
8.34ft in
Undercarriage
Number Of Bottom Rollers Per Side
7
Number Of Shoes Per Side
46
Number Of Top Rollers Per Side
1
Specifications
Speeds
High
3mph
Low
1.8mph
Electrical System
Alternator
24 v, 85 amp
Starter
24V
Battery
12V, 100AH
Engine
Starter
6hp
Number Of Cylinders
4
Engine Make
Perkins
Engine Model
1204F
Net Power
113hp
Gross Power
115hp
Air Cleaner
Double Elements
Power Measured @
2000rpm
Max Torque
1301.1lb ft
Displacement
268.6cu in
Torque Measured @
1400rpm
Bore
4.2in
Stroke
5in
Operational
Def Tank Capacity
5gal
Operating Weight
32783lb
Fuel Capacity
70gal
Cooling System Fluid Capacity
6.6gal
Hydraulic System Fluid Capacity
45gal
Final Drive Fluid Capacity - Each
0.6gal
Engine Oil Capacity
2.1gal
Swing Drive Fluid Capacity
0.8gal
Hydraulic System Relief Valve Pressure
5.4psi
Hydraulic Tank
39.7gal
Performance
Travel-Normal Mode
4694psi
Travel-Power Mode
4978psi
Swing - Normal Mode
4694psi
Swing-Power Mode
4978psi
Traction Force -Draw Bar Pull
35935lb ft
Maximum Grade
35degrees
Swing Mechanism
Swing Torque
34718lb ft
Swing Speed
10.7rpm
Weights
Counterweight
4850lb
Buckets
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
0.6yd3
Hydraulic
Main Pump Flow Standard
60.2gal/min
Pilotpump-Gear Design
7.9gal/min
Relief Pressure - Boost
4694psi
Relief Pressure -Normal
4978psi
