Clark Michigan GEX20 Forklift

Clark Michigan GEX20 Forklift Specs front
Clark Michigan GEX20 Forklift Specs front
Clark Michigan GEX20 Forklift Specs side
Clark Michigan GEX20 Forklift Specs side
Clark Michigan GEX20 Forklift Specs back
Clark Michigan GEX20 Forklift Specs back
Units

Dimensions

Dimensions

A

Length to Fork Face

7.67 ft in

B

Overall Width

4.04 ft in

C

Overall Height - mast lowered

7.1 ft in

D

Wheelbase

5.29 ft in

E

Ground Clearance

3 in

F

Height to Top of Overhead Guard

7.05 ft in

G

Max Fork Height

10.49 ft in

MAST

H

Mast Tip Forward

8 degrees

I

Mast Tip Rear

8 degrees


Specifications

Engine

Fuel Type

Electric 80V

Operational

Operating Weight

8897 lb

Tire Type

Superelastic

Number of Front Wheels

2

Number of Rear Wheels

2

Max Speed

9.7 mph

MAST

Load Capacity

4000 lb

Load Center

24 in

Mast Tip Forward

8 degrees

Mast Tip Rear

8 degrees

Lift Speed

94 ft/min

Lower Speed

92 ft/min

Dimensions

Wheelbase

5.3 ft in

Length to Fork Face

7.7 ft in

Overall Width

4.1 ft in

Overall Height - mast lowered

7.1 ft in

Max Fork Height

10.5 ft in

Turning Radius

6.4 ft in

Height to Top of Overhead Guard

7.1 ft in

Ground Clearance

3 in

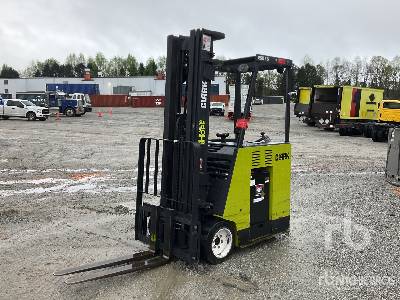

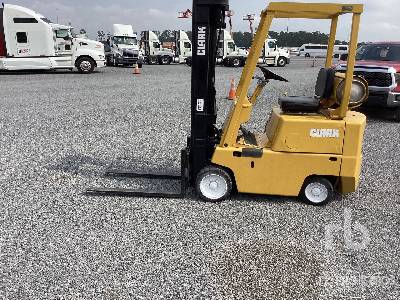

Compare similar models
