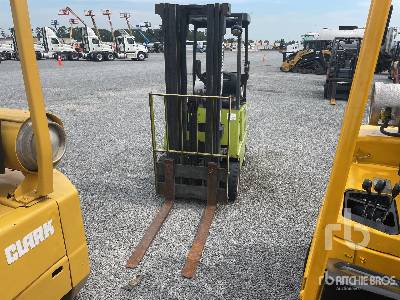

Clark Michigan CMP40 LPG 4X Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
10.18ft in
B
Overall Width
6.24ft in
C
Overall Height - Mast Lowered
7.83ft in
D
Wheelbase
6.4ft in
E
Ground Clearance
5.9in
F
Height To Top Of Overhead Guard
7.31ft in
G
Max Fork Height
14.1ft in
Right Angle Stack
11.19ft in
Turning Radius
9.29ft in
Mast
H
Mast Tip Forward
8degrees
I
Mast Tip Rear
10degrees
Number Of Mast Sections
3
Lower Speed
93ft/min
Max Fork Spread
54in
Load Center
24in
Load Capacity
8000lb
Lift Speed
106ft/min
Specifications
Engine
Number Of Cylinders
6
Engine Make
2374
Engine Model
Vortec 4300LT
Power
93hp
Torque
235lb ft
Power Measured @
2400rpm
Displacement
262cu in
Torque Measured @
2000rpm
Fuel Type
LPG
Operational
Operating Weight
14601lb
Tire Type
Pneumatic
Number Of Front Wheels
4
Number Of Rear Wheels
2
Max Speed
13.3mph
