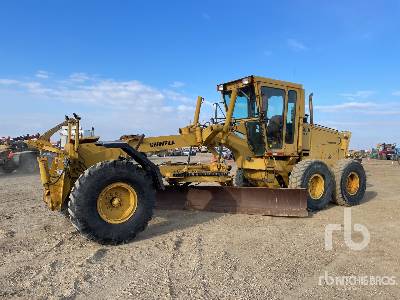

Champion C86C Motor Grader

Champion C86C Motor Grader Specs front
Champion C86C Motor Grader Specs front
Champion C86C Motor Grader Specs side
Champion C86C Motor Grader Specs side
Champion C86C Motor Grader Specs back
Champion C86C Motor Grader Specs back
Units

Dimensions

Dimensions

A

Overall Length

20.84 ft in

B

Width Over Tires

7.75 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2347

Engine Model

4BT3.9

Net Power Gear 1-2

110 hp

Power Measured @

2500 rpm

Displacement

238 cu in

Operational

Std Operation Weight - Total

15498.5 lb

Steering

Articulation Angle

27 degrees

Turning Radius

8.8 ft in

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

19.9 mph

Max Speed - Reverse

19.9 mph

Front Axle

Wheel Lean

15 degrees

Oscillation - Total

35 degrees

Moldboard

Moldboard Width

11.1 ft in

Moldboard Height

19.1 in

Moldboard Thickness

0.7 in

Circle

Max Reach Outside Tires - Left

87.1 in

Max Reach Outside Tires - Right

87.1 in

Max Lift Above Ground

20 in

Blade Tip Angle - Front

45 degrees

Blade Tip Angle - Rear

5 degrees

Dimensions

Height to Top of Isomount Cab

9.6 ft in

Overall Length

20.9 ft in

Width Over Tires

7.8 ft in
