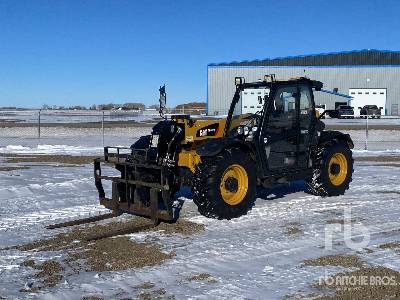

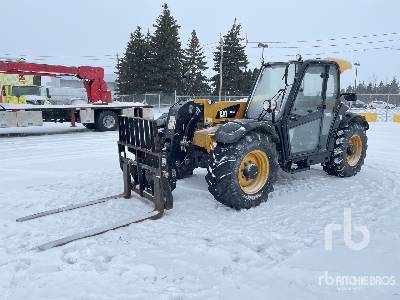

Caterpillar TH62 US Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
9.06ft in
E
Ground Clearance
17.72ft in
B
Width Over Tires
7.32ft in
C
Overall Height
7.98ft in
D
Wheelbase
9.52ft in
Turning Radius Outside Tires
11.91ft in
Lift
F
Max Lift Height
24.94ft in
G
Max Forward Reach
13.78ft in
Max Load At Max Reach
3163.64lb
Max Load At Max Height
3009.31lb
Max Lift Capacity
6007.6lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054T
Gross Power
109hp
Net Power
81hp
Power Measured @
2200rpm
Displacement
244.1cu in
Aspiration
Turbocharged
Operational
Operating Weight
15079.7lb
Fuel Capacity
31.8gal
Hydraulic System Fluid Capacity
39.7gal
Tire Size
Construct: 13x24 12PR Agricult: 17.5LR24
Transmission
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
19.9mph
Max Speed - Reverse
13.7mph
