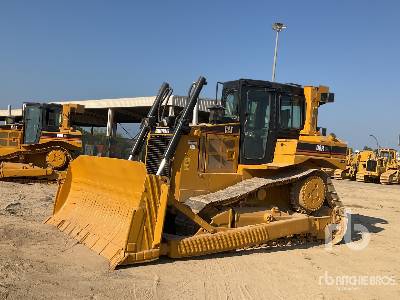

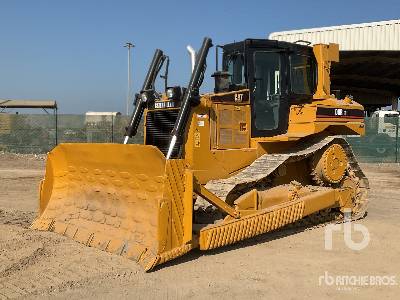

Caterpillar D6R XL Crawler Tractor
Units
Dimensions
Blades
Su - Blade Width
10.7ft in
A-Blade Width
12.4ft in
Angle Straight Blade Width
13.7ft in
Blade Type
SU, A, PAT
Dimensions
A
Length W/ Blade
17.5ft in
B
Width Over Tracks
8.01ft in
C
Height To Top Of Cab
10.49ft in
D
Length Of Track On Ground
9.26ft in
E
Ground Clearance
1.26ft in
F
Length W/O Blade
12.67ft in
Overall Length - Basic Tractor - With Drawbar
13.3ft in
Height
7.8ft in
Height - Rops/Canopy
10.4ft in
Overall Length - With Blade
225in
Undercarriage
G
Track Gauge
6.2ft in
H
Standard Shoe Size
22.05in
E
Ground Clearance
1.24ft in
Shoe Type
Single grouser
Shoes/Side
41
Number Of Track Rollers Per Side
7
Number Of Shoes Per Side
41
Ground Pressure
8.56psi
Track On Ground
9.25in
Track Pitch
8in
Track Rollers/Side
7
Width - Shoe
22.05in
Ground Contact Area
4888in2
Specifications
Ripper
Number Of Pockets
3
Ripper Type
Parallelogram
Overall Beam Width
86.7in
Maximum Penetration
19.7in
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole
20.2in
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
3306
Gross Power
189hp
Net Power
175hp
Power Measured @
1900rpm
Displacement
640.8cu in
Aspiration
Turbocharged
Engine Model
3306 T
Flywheel Power
175hp
Maximum Flywheel Power
189hp
Flywheel Power - Power Shift
175hp
Operational
Operating Weight
41900lb
Fuel Capacity
101.2gal
Cooling System Fluid Capacity
19.6gal
Engine Oil Capacity
7.3gal
Hydraulic Fluid Capacity
20.1gal
Powertrain Fluid Capacity
41gal
Final Drives Fluid Capacity
3.6gal
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Transmission
Transmission Type
Power Shift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
7.4mph
Max Speed - Reverse
9.5mph
1.0 Forward
2.5mph
2.0 Forward
4.3mph
3.0 Forward
7mph
1.0 Reverse
3mph
2.0 Reverse
5.3mph
3.0 Reverse
9.2mph
Weights
Operating Weight
42300lb
Operating Weight - Power Shift
41900lb
Operating Weight - Power Psds
42300lb
Hydraulic System
Pump Type
Piston
Relief Valve Pressure
2800psi
Pump Flow Capacity
50.2gal/min
Standard Blade
Width
10.7ft in
Height
55.6in
Capacity
7.4yd3
Cutting Depth
18.1in
Service Refill Capacities
Cooling System
19.6gal
Fuel Tank
101.2gal
Final Drive - Each
3.7gal
Hydraulic Tank
20.1gal
Engine Crankcase
7.4gal
Power Train
41gal
Winch
Flange Diameter
13in
Oil Capacity
17.7gal
Winch And Bracket Length
47.3in
Drum Diameter
10.3in
Drum Width
10in
Winch Case - Width
38.4in
Weight*
2502.3lb
Increased Tractor Length - Std
20.4in
