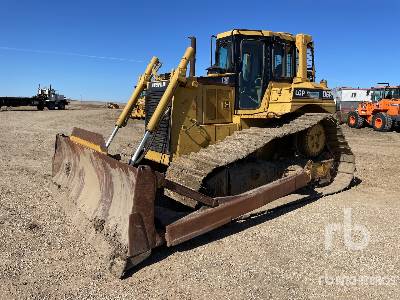

Caterpillar D6R LGP Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

A

Length W/ Blade

17.93ft in

B

Width Over Tracks

10.31ft in

C

Height To Top Of Cab

10.65ft in

D

Length Of Track On Ground

10.64ft in

E

Ground Clearance

1.43ft in

F

Length W/O Blade

13.94ft in

Undercarriage

G

Track Gauge

7.25ft in

H

Standard Shoe Size

36.03in

Number Of Shoes Per Side

45

Ground Pressure

4.95psi

Ground Contact Area

9961in2

Number Of Track Rollers Per Side

8

Track Pitch

8in


Specifications

Engine

Number Of Cylinders

6

Engine Make

2236

Engine Model

3306

Gross Power

199hp

Net Power

185hp

Power Measured @

1900rpm

Displacement

638cu in

Aspiration

Turbocharged

Operational

Operating Weight

45200lb

Fuel Capacity

101.2gal

Cooling System Fluid Capacity

19.6gal

Engine Oil Capacity

7.3gal

Hydraulic Fluid Capacity

20.1gal

Powertrain Fluid Capacity

41gal

Final Drives Fluid Capacity

3.6gal

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Transmission

Transmission Type

Power Shift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

7.4mph

Max Speed - Reverse

9.5mph

Hydraulic System

Pump Type

Piston Style

Relief Valve Pressure

2800psi

Pump Flow Capacity

50.2gal/min

Standard Blade

Width

13.1ft in

Height

43.4in

Capacity

4.9yd3

Cutting Depth

25.8in
