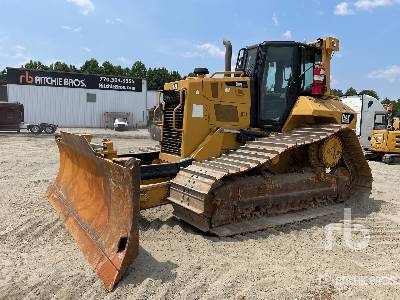

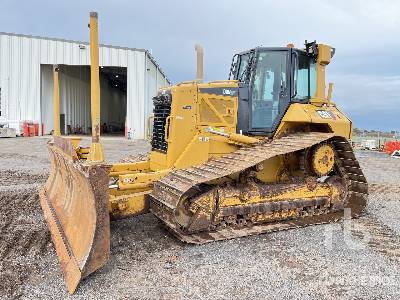

Caterpillar D6N WH LGP Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
8.17ft in
C
Height To Top Of Cab
10.11ft in
D
Length Of Track On Ground
10.25ft in
E
Ground Clearance
1.39ft in
F
Length W/O Blade
12.27ft in
Undercarriage
H
Standard Shoe Size
33in
Number Of Shoes Per Side
46
Number Of Track Rollers Per Side
8
Ground Contact Area
8122in2
Specifications
Engine
Engine Make
2236
Engine Model
C6.6 ACERT
Net Power
150hp
Displacement
439cu in
Operational
Operating Weight
42454lb
Fuel Capacity
79gal
Operating Voltage
24V
Alternator Supplied Amperage
95amps
Standard Blade
Width
13.4ft in
Capacity
6yd3
