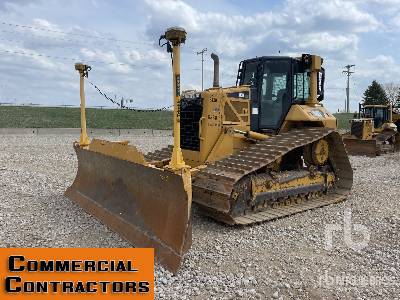

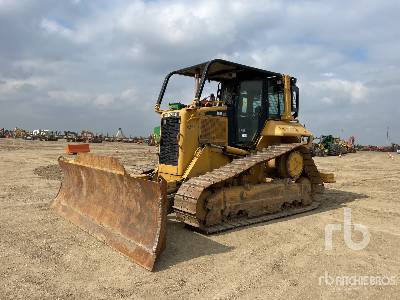

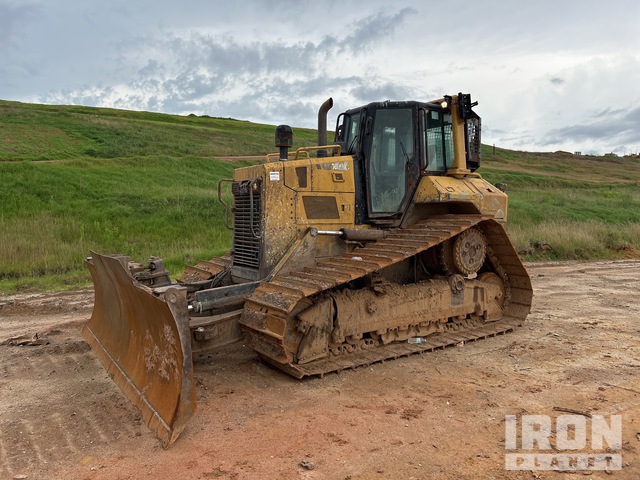

Caterpillar D6N WH Crawler Tractor
Dimensions
Dimensions - Lgp
Track Gauge
85in
Ground Clearance
18.8in
Width - Tractor - Without Trunnions
118in
Note
*Add 957 mm (37.7 in) to length of basic tractor (with drawbar) with ripper (with tip at ground line).
Height - Grouser
2.21in
Length - Basic Tractor - With Drawbar*
166.2in
Length - Track On Ground
122.7in
Machine Height - Grouser Tip - Exhaust Stack
126.9in
Dimensions - Xl
Ground Clearance
14.3in
Track Gauge
74.41in
Width - Tractor - Without Trunnions
98.4in
Machine Height - Grouser Tip - Exhaust Stack
122.4in
Note
*Add 1185 mm (46.7 in) to length of basic tractor (with drawbar) with SU blade added. Add 957 mm (37.7 in) to length of basic tractor (with drawbar) with ripper (with tip at ground line).
Height - Grouser
2.6in
Length - Basic Tractor - With Drawbar*
157.31in
Length - Track On Ground
101.6in
Undercarriage
Ground Pressure
4.5psi
Specifications
Engine
Displacement
433cu in
Bore
4.1in
Stroke
5.3in
Emissions
Tier 4 Final/Stage IV/Korea Tier 4 Final
Engine Model
Cat C7.1 ACERT
Flywheel Power
182hp
Note (1)
All non road Tier 4, Stage IIIB and IV, and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (EPA), 10 ppm (EU) (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2)
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Note (3)
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Net Power - 1,800 Rpm - Iso 9249/Sae J1349 (Din)
168hp
Net Power - 1,800 Rpm - Iso 9249/Sae J1349
166hp
Net Power - Maximum - Iso 14396 (Din) At 2,200 Rpm
180hp
Net Power - Maximum - Sae J1995 At 2,200 Rpm
182hp
Net Power - Maximum - Iso 14396 At 2,200 Rpm
178hp
Operational
Operating Weight
40818lb
Transmission
1.0 Forward
2.1mph
2.0 Forward
3.6mph
3.0 Forward
6.1mph
1.0 Reverse
2.5mph
2.0 Reverse
4.4mph
3.0 Reverse
7.6mph
1.5 Forward
2.7mph
2.5 Forward
4.7mph
1.5 Reverse
3.4mph
2.5 Reverse
5.9mph
0.5 Forward
1.6mph
0.7 Forward
1.7mph
1.7 Forward
3mph
2.7 Forward
5.2mph
0.5 Reverse
1.9mph
0.7 Reverse
2.1mph
1.7 Reverse
3.7mph
2.7 Reverse
6.5mph
Weights
Operating Weight - Xl Waste Handler
40818lb
Operating Weight - Lgp Waste Handler
44749lb
Shipping Weight - Xl Waste Handler
40029lb
Shipping Weight - Lgp Waste Handler
43642lb
Blades - Capacity (Sae J1265)
Xl Vpat Landfill*
8.3yd3
Xl Vpat
4.3yd3
Xl Su
5.6yd3
Lgp Vpat - Landfill*
7.4yd3
Lgp Vpat
5.1yd3
Note
*Blade capacity with trash rack.
Blades - Width - Over End Bits
Xl Vpat Landfill*
10.3ft in
Xl Vpat
10.8ft in
Xl Su
10.4ft in
Lgp Vpat - Landfill*
12.9ft in
Lgp Vpat
13.4ft in
Note
*Blade capacity with trash rack.
