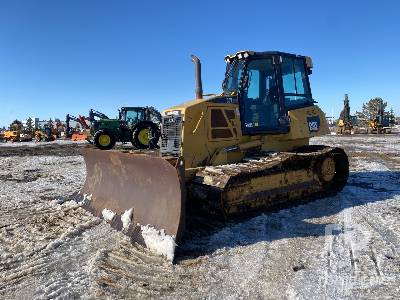

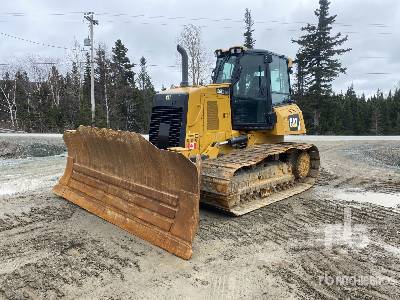

Caterpillar D6K LGP Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

A

Length W/ Blade

16.34ft in

B

Width Over Tracks

9.06ft in

C

Height To Top Of Cab

9.7ft in

D

Length Of Track On Ground

8.67ft in

E

Ground Clearance

1.18ft in

F

Length W/O Blade

12.41ft in

Undercarriage

G

Track Gauge

6.57ft in

H

Standard Shoe Size

30in

Number Of Shoes Per Side

40

Ground Pressure

4.74psi

Ground Contact Area

6200in2

Number Of Track Rollers Per Side

7


Specifications

Engine

Number Of Cylinders

6

Engine Make

2236

Engine Model

C6.6 ACERT

Net Power

125hp

Displacement

403cu in

Operational

Operating Weight

29690lb

Fuel Capacity

77.9gal

Cooling System Fluid Capacity

6.4gal

Engine Oil Capacity

4.4gal

Hydraulic Fluid Capacity

15.3gal

Final Drives Fluid Capacity

6gal

Operating Voltage

24V

Alternator Supplied Amperage

95amps

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

6.3mph

Max Speed - Reverse

6.3mph

Standard Blade

Width

11ft in

Capacity

3.8yd3
