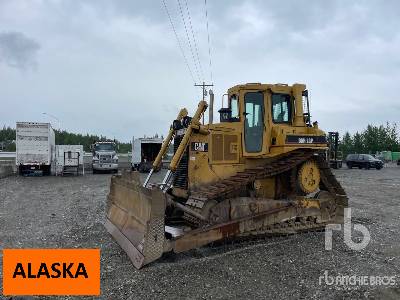

Caterpillar D6H LGP Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

A

Length W/ Blade

16.99ft in

B

Width Over Tracks

10.31ft in

C

Height To Top Of Cab

10.3ft in

D

Length Of Track On Ground

10.72ft in

E

Ground Clearance

1.26ft in

F

Length W/O Blade

14.72ft in

Undercarriage

G

Track Gauge

7.3ft in

H

Standard Shoe Size

36.03in

Number Of Shoes Per Side

45

Ground Pressure

4.63psi

Ground Contact Area

9252in2

Number Of Track Rollers Per Side

8


Specifications

Engine

Number Of Cylinders

6

Engine Make

2236

Engine Model

3306

Gross Power

179hp

Net Power

165hp

Power Measured @

1800rpm

Displacement

640.8cu in

Aspiration

turbocharged

Operational

Operating Weight

43354lb

Fuel Capacity

85.1gal

Cooling System Fluid Capacity

10.1gal

Engine Oil Capacity

7.3gal

Final Drives Fluid Capacity

3.5gal

Operating Voltage

24V

Alternator Supplied Amperage

35amps

Transmission

Transmission Type

Planetary powershift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

7.1mph

Max Speed - Reverse

9mph

Hydraulic System

Pump Type

Gear pump

Relief Valve Pressure

2875psi

Pump Flow Capacity

19.3gal/min

Standard Blade

Width

13.1ft in

Height

43.3in

Capacity

4.9yd3

Cutting Depth

25.9in
