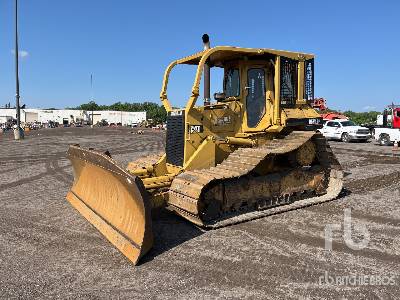

Caterpillar D5H LGP Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

A

Length W/ Blade

17.39ft in

B

Width Over Tracks

9.91ft in

C

Height To Top Of Cab

10.07ft in

D

Length Of Track On Ground

10.24ft in

E

Ground Clearance

1.46ft in

F

Length W/O Blade

13.55ft in

Undercarriage

G

Track Gauge

7.09ft in

H

Standard Shoe Size

33.86in

Number Of Shoes Per Side

46

Ground Pressure

3.88psi

Ground Contact Area

8308.02in2

Number Of Track Rollers Per Side

8


Specifications

Engine

Number Of Cylinders

4

Engine Make

2236

Engine Model

3304

Gross Power

129hp

Net Power

120hp

Power Measured @

2200rpm

Displacement

427.2cu in

Aspiration

turbocharged

Operational

Operating Weight

32380lb

Fuel Capacity

65gal

Cooling System Fluid Capacity

7.4gal

Engine Oil Capacity

4.8gal

Hydraulic Fluid Capacity

18.5gal

Final Drives Fluid Capacity

1.9gal

Operating Voltage

24V

Alternator Supplied Amperage

50amps

Transmission

Transmission Type

Planetary powershift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

6.3mph

Max Speed - Reverse

7.8mph

Hydraulic System

Pump Type

Load sensing hydraulics, variable displacement piston pump

Relief Valve Pressure

3000psi

Pump Flow Capacity

28.8gal/min

Standard Blade

Width

13.1ft in

Height

40.4in

Capacity

4.2yd3

Cutting Depth

19.4in
