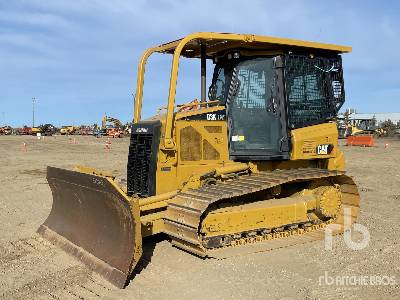

Caterpillar D3 Crawler Tractor

Caterpillar D3 Crawler Tractor Specs front
Caterpillar D3 Crawler Tractor Specs front
Caterpillar D3 Crawler Tractor Specs side
Caterpillar D3 Crawler Tractor Specs side
Caterpillar D3 Crawler Tractor Specs back
Caterpillar D3 Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

12.08 ft in

B

Width Over Tracks

5.84 ft in

C

Height to Top of Cab

5.58 ft in

D

Length of Track on Ground

5.99 ft in

E

Ground Clearance

1.01 ft in

F

Length w/o Blade

9.09 ft in

Undercarriage

G

Track Gauge

4.66 ft in

H

Standard Shoe Size

12.01 in


Specifications

Engine

Engine Model

3204

Gross Power

62 hp

Displacement

317.4 cu in

Operational

Operating Weight

30820.7 lb

Fuel Capacity

30.2 gal

Transmission

Transmission Type

powershift

Number of Forward Gears

3

Number of Reverse Gears

1

Max Speed - Forward

7.1 mph

Max Speed - Reverse

3.2 mph

Undercarriage

Ground Pressure

7.9 psi

Ground Contact Area

1720.6 in2

Standard Shoe Size

12.1 in

Number of Track Rollers per Side

5

Track Gauge

4.7 ft in

Dimensions

Length w/o Blade

9.1 ft in

Length w/ Blade

12.1 ft in

Width Over Tracks

5.9 ft in

Height to Top of Cab

5.6 ft in

Length of Track on Ground

6 ft in

Ground Clearance

1.1 ft in
