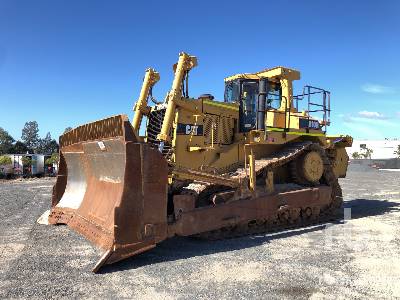

Caterpillar D10N Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

A

Length W/ Blade

25.46ft in

B

Width Over Tracks

10.83ft in

C

Height To Top Of Cab

13.92ft in

D

Length Of Track On Ground

12.7ft in

E

Ground Clearance

2.02ft in

F

Length W/O Blade

18.34ft in

Undercarriage

G

Track Gauge

8.37ft in

H

Standard Shoe Size

24.02in

Ground Contact Area

7331.52in2

Number Of Track Rollers Per Side

8

Ground Pressure

17.28psi


Specifications

Engine

Engine Make

2236

Engine Model

3412

Gross Power

520hp

Displacement

1647.7cu in

Aspiration

Turbocharged

Operational

Operating Weight

126567.4lb

Fuel Capacity

270.3gal

Hydraulic Fluid Capacity

28.6gal

Transmission

Transmission Type

powershift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

7.8mph

Max Speed - Reverse

9.7mph

Hydraulic System

Relief Valve Pressure

2697.8psi

Pump Flow Capacity

107.8gal/min

Standard Blade

Width

16ft in

Height

80.8in

Capacity

22.5yd3

Cutting Depth

26.6in
