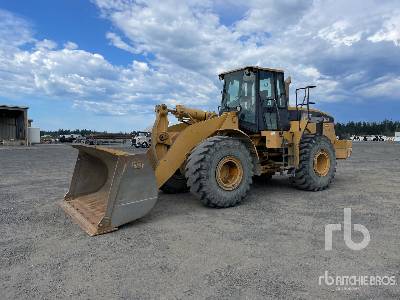

Caterpillar 972G Wheel Loader

Caterpillar 972G Wheel Loader Specs front
Caterpillar 972G Wheel Loader Specs front
Caterpillar 972G Wheel Loader Specs side
Caterpillar 972G Wheel Loader Specs side
Caterpillar 972G Wheel Loader Specs back
Caterpillar 972G Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

10.8 ft in

Dimensions

A

Length with Bucket on Ground

29.65 ft in

B

Width Over Tires

9.72 ft in

E

Ground Clearance

1.42 ft in

H

Reach at Max Lift and Dump

4.2 ft in


Specifications

Engine

Engine Model

3306DITA

Net Power

275 hp

Gross Power

265 hp

Displacement

640.8 cu in

Operational

Operating Weight

54963.5 lb

Fuel Capacity

108.4 gal

Hydraulic System Fluid Capacity

54.7 gal

Static Tipping Weight

40397.6 lb

Transmission

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23 mph

Max Speed - Reverse

26.1 mph

Hydraulic System

Raise Time

6.6 sec

Dump Time

1.6 sec

Lower Time

1.8 sec

Bucket

Breakout Force

51210 lb

Dump Clearance at Max Raise

10.8 ft in

Bucket Width

10.6 ft in

Bucket Capacity - heaped

4.8 yd3

Dimensions

Length with Bucket on Ground

29.7 ft in

Width Over Tires

9.8 ft in

Ground Clearance

1.5 ft in

Reach at Max Lift and Dump

4.2 ft in
