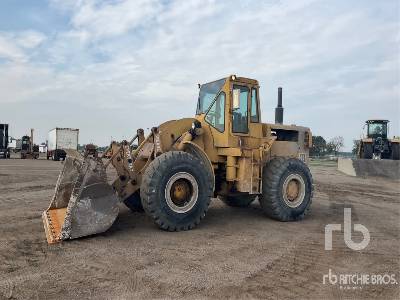

Caterpillar 966C Wheel Loader

Caterpillar 966C Wheel Loader Specs front
Caterpillar 966C Wheel Loader Specs front
Caterpillar 966C Wheel Loader Specs side
Caterpillar 966C Wheel Loader Specs side
Caterpillar 966C Wheel Loader Specs back
Caterpillar 966C Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.68 ft in

Dimensions

A

Length with Bucket on Ground

22.41 ft in

B

Width Over Tires

9.09 ft in

C

Height to Top of Cab

11.68 ft in

E

Ground Clearance

1.32 ft in

F

Hinge Pin - Max Height

13.67 ft in

H

Reach at Max Lift and Dump

2.6 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3306

Net Power

170 hp

Displacement

640.8 cu in

Operational

Operating Weight

36900 lb

Fuel Capacity

65 gal

Hydraulic System Fluid Capacity

52.1 gal

Static Tipping Weight

28153.1 lb

Tire Size

20.5-25 12 PR(L-3)

Transmission

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

23.7 mph

Max Speed - Reverse

28.1 mph

Hydraulic System

Raise Time

6.2 sec

Dump Time

1.6 sec

Lower Time

3.8 sec

Bucket

Breakout Force

25578 lb

Dump Clearance at Max Raise

9.7 ft in

Bucket Width

9.6 ft in

Bucket Capacity - heaped

4.1 yd3

Dimensions

Length with Bucket on Ground

22.5 ft in

Width Over Tires

9.1 ft in

Height to Top of Cab

11.7 ft in

Ground Clearance

1.4 ft in

Hinge Pin - Max Height

13.7 ft in

Reach at Max Lift and Dump

2.6 ft in
