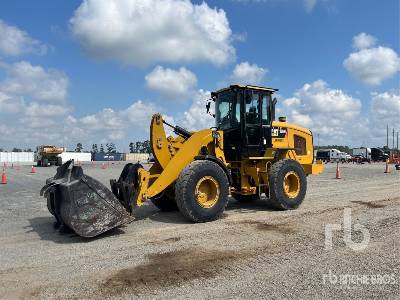

Caterpillar 926 Wheel Loader

Caterpillar 926 Wheel Loader Specs front
Caterpillar 926 Wheel Loader Specs front
Caterpillar 926 Wheel Loader Specs side
Caterpillar 926 Wheel Loader Specs side
Caterpillar 926 Wheel Loader Specs back
Caterpillar 926 Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.1 ft in

Dimensions

A

Length with Bucket on Ground

21.65 ft in

B

Width Over Tires

7.63 ft in

C

Height to Top of Cab

10.42 ft in

D

Wheelbase

9.42 ft in

E

Ground Clearance

0.95 ft in

F

Hinge Pin - Max Height

11.83 ft in

H

Reach at Max Lift and Dump

3.24 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3204

Net Power

104.6 hp

Power Measured @

2400 rpm

Displacement

317.4 cu in

Aspiration

turbocharged

Operational

Operating Weight

20498.6 lb

Fuel Capacity

39.7 gal

Hydraulic System Fluid Capacity

24.4 gal

Engine Oil Fluid Capacity

3.7 gal

Transmission Fluid Capacity

9 gal

Front Axle/Diff Fluid Capacity

6.7 gal

Rear Axle/Diff Fluid Capacity

6.7 gal

Static Tipping Weight

15220.8 lb

Turning Radius

16.8 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Rear Axle Oscillation

30 degrees

Tire Size

15.5-25, 12 PR (L-2)

Transmission

Transmission Type

powershift

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

18.9 mph

Max Speed - Reverse

20.1 mph

Hydraulic System

Relief Valve Setting

2500

Pump Flow Capacity

40.2 gal/min

Raise Time

5.9 sec

Dump Time

1.6 sec

Lower Time

3.6 sec

Bucket

Breakout Force

24234.5 lb

Dump Clearance at Max Raise

9.1 ft in

Bucket Width

7.8 ft in

Bucket Capacity - heaped

2 yd3

Bucket Capacity - struck

1.8 yd3

Dimensions

Length with Bucket on Ground

21.7 ft in

Width Over Tires

7.7 ft in

Height to Top of Cab

10.5 ft in

Ground Clearance

1 ft in

Wheelbase

9.5 ft in

Hinge Pin - Max Height

11.9 ft in

Reach at Max Lift and Dump

3.3 ft in
