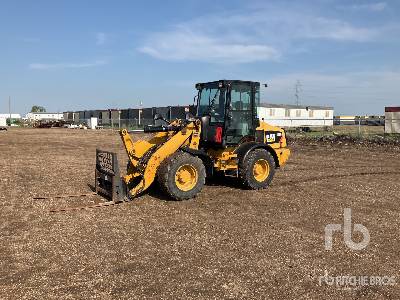

Caterpillar 908H Wheel Loader

Caterpillar 908H Wheel Loader Specs front
Caterpillar 908H Wheel Loader Specs front
Caterpillar 908H Wheel Loader Specs side
Caterpillar 908H Wheel Loader Specs side
Caterpillar 908H Wheel Loader Specs back
Caterpillar 908H Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.34 ft in

Dimensions

A

Length with Bucket on Ground

18.9 ft in

B

Width Over Tires

6.52 ft in

C

Height to Top of Cab

8.7 ft in

D

Wheelbase

7.12 ft in

E

Ground Clearance

1.12 ft in

F

Hinge Pin - Max Height

11.19 ft in

H

Reach at Max Lift and Dump

2.81 ft in


Specifications

Engine

Engine Make

2236

Engine Model

C3.4

Net Power

79 hp

Gross Power

83 hp

Power Measured @

2500 rpm

Displacement

203 cu in

Operational

Operating Weight

14252.9 lb

Fuel Capacity

20.7 gal

Hydraulic System Fluid Capacity

22.2 gal

Engine Oil Fluid Capacity

2.7 gal

Cooling System Fluid Capacity

6.4 gal

Static Tipping Weight

10524.9 lb

Turning Radius

7.5 ft in

Operating Voltage

12 V

Alternator Supplied Amperage

90 amps

Tire Size

405/70 R20

Transmission

Transmission Type

Hydrostatic

Number of Forward Gears

2

Number of Reverse Gears

2

Max Speed - Forward

12.5 mph

Max Speed - Reverse

12.5 mph

Hydraulic System

Relief Valve Setting

3400

Pump Flow Capacity

22 gal/min

Raise Time

5 sec

Dump Time

2 sec

Lower Time

4 sec

Bucket

Dump Clearance at Max Raise

8.4 ft in

Bucket Width

6.8 ft in

Bucket Capacity - heaped

1.5 yd3

Dimensions

Length with Bucket on Ground

18.9 ft in

Width Over Tires

6.6 ft in

Height to Top of Cab

8.7 ft in

Ground Clearance

1.2 ft in

Wheelbase

7.2 ft in

Hinge Pin - Max Height

11.2 ft in

Reach at Max Lift and Dump

2.9 ft in
