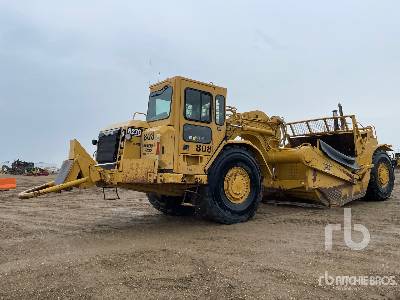

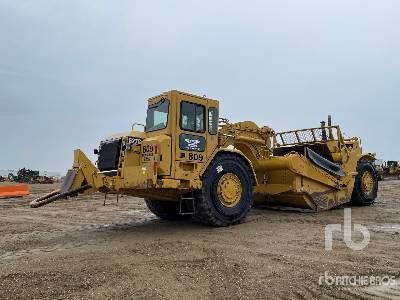

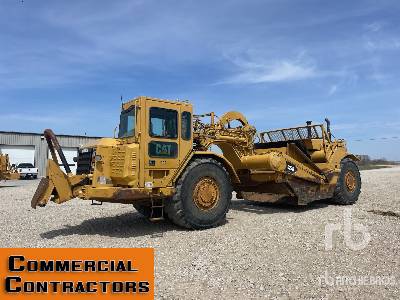

Caterpillar 627G Motor Scraper

Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
Units

Dimensions

Dimensions

A

Overall Length

42.38ft in

B

Overall Width

11.38ft in

C

Overall Height

12.16ft in

D

Wheelbase

25.33ft in

E

Tractor Ground Clearance

1.81ft in

F

Height to Top of Cab

11.23ft in


Specifications

Engine

Tractor Engine

Cat C15 ACERT

Scraper Engine

Cat C9 ACERT

Tractor Engine

Make

Caterpillar

Model

C15 ACERT

Gross Power

394hp

Net Power

365hp

Displacement

928cu in

Net Power - Gears 1-2

330hp

Gross Power - Gears 1-2

359hp

Bore

5.5in

Stroke

6.5in

Net Power - Gears 3-8

365hp

Gross Power - Gears 3-8

394hp

Net Power - Tractor/Scraper

246 kW (330 hp) / 178 kW (239 hp)

Scraper Engine

Make

Caterpillar

Model

C9 ACERT

Gross Power

286hp

Net Power

266hp

Displacement

538cu in

Bore

4.5in

Stroke

5.9in

Net Power - Gear 1

239hp

Net Power - Gears 2-4

266hp

Gross Power - Gear 1

258hp

Gross Power - Gears 2-4

286hp

Operational

Fuel Capacity

292gal

Cooling System Fluid Capacity

48.3gal

Engine Oil Fluid Capacity

16.5gal

Transmission Fluid Capacity

34.6gal

Differential Fluid Capacity

42gal

Hydraulic System Fluid Capacity

37gal

Wheel Coolant Fluid Capacity - each

24gal

Operating Voltage

24V

Alternator Supplied Amperage

75amps

Tire Size

33.25-R29

Transmission

Transmission Type

powershift

Number of Forward Gears

8

Number of Reverse Gears

1

Max Speed Forward

32mph

Max Speed Reverse

5.7mph

Reverse

5.7 mile/h

1 Forward

3.1mph

2 Forward

4.7mph

3 Forward

6.8mph

4 Forward

9.2mph

5 Forward

12.4mph

6 Forward

16.7mph

7 Forward

22.6mph

8 Forward

32mph

Travel Speed - Maximum

32mph

Steering

Width - 180 degrees Turn

35.9ft in

Steering Angle - Right

90 degrees

Steering Angle - Left

85 degrees

Hydraulic Output

55 gal/min

Weights

Total Operating - empty

86800lb

Operating Weight

136905lb

Front Axle - empty

52080%

Rear Axle - empty

34720%

Total Operating - Loaded

139601lb

Front Axel - loaded

68405lb

Rear Axle - loaded

71197%

Bowl

Rated Payload

52800lb

Heaped Capacity

22yd3

Struck Capacity

15.7yd3

Max Depth of Cut

13.1in

Width of Cut

10ft in

Dimensions

Overall Length

42.4ft in

Overall Width

11.4ft in

Height to Top of Cab

11.3ft in

Overall Height

12.2ft in

Wheelbase

25.4ft in

Tractor Ground Clearance

1.9ft in

Wheel Base

25.4ft in

Height - Top of Cab

11.3ft in

Width - Rear Tire Center Lines

85.8in

Rim Radius

17in

Length - Overall Machine

508.5in

Width - Outside Rear Tires

120in

Width - Inside of Bowl

116in

Height - Overall Shipping

145.9in

Width - Tractor

123.3in

Width - Overall Machine

136.5in

Ground Clearance - Tractor

21.8in

Front of Tractor to Front Axle

120.4in

Height - Scraper Blade Maximum

20.6in

Rear Axle - Rear of Machine

84.3in

Axle to Vertical Hitch Pin

17in

Extended Push Block (Push-Pull)

109.7in

Bail Length - Maximum (Push-Pull)

63.5in

Hydraulics

Bowl Cylinder Bore

6in

Bowl Cylinder Stroke

32in

Steering Circuit

55 gal/min

Scraper Circuit

65.5 gal/min

Cushion Hitch Circuit

9.8 gal/min

Relief Valve - Steering Circuit

2250 psi

Relief Valve - Implement Circuit

2175 psi

Ejector Cylinder Bore

6.5in

Ejector Cylinder Stroke

61in

Secondary Steering Circuit

39.9 gal/min

Apron Cylinder Bore

7.3in

Apron Cylinder Stroke

23.5in

Scraper Bowl

Capacity Heaped

22yd3

Width - Cut - To Router Bits

119in

Rated Load

52800lb

Capacity - Struck

15.7yd3

Depth of Cut - Maximum

13.1in

Ground Clearance - Maximum

20.6in

Cutting Edge Thickness

0.9in

Depth of Spread - Maximum

20.6in

Apron Closure Force

24075lb

Apron Opening

70in

Hyd. Penetration Force - 627G

48375lb

Service Refill Capacities - Scraper

Transmission

15.6gal

Differential

4gal

Final Drive - Each

5gal

Cooling System

20.3gal

Fuel Tank - 627G

292gal

Crankcase

7gal

Wheel Coolant - Each

12gal

Service Refill Capacities - Tractor

Transmission

19gal

Differential

38gal

Final Drive - Each

5gal

Cooling System

28gal

Hydraulic Reservoir

37gal

Crankcase

9.5gal

Wheel Coolant - Each

12gal

Windshield Washer

1.5gal

Weights - Standard, Tandem

Total Shipping

82113lb

Tractor Shipping

48447lb

Scraper Shipping

33666lb

Total Operating - Empty

83441lb

Front Axle

49230lb

Rear Axle

34211lb

Total Operating - Loaded

136241lb

Front Axle Weight - Loaded

65396lb

Rear Axle - Weight - Loaded

70845lb

Weights - Push-Pull

Total Shipping

85473lb

Tractor Shipping

52139lb

Scraper Shipping

33335lb

Total Operating - Empty

86800lb

Front Axle

52080lb

Rear Axle

34720lb

Total Operating - Loaded

139601lb

Front Axle - Loaded

68405lb

Rear Axle - Loaded

71197lb
