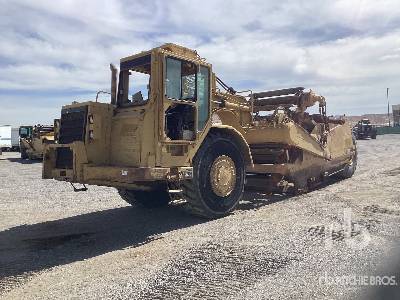

Caterpillar 623F Motor Scraper

Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
Motor Scraper
MODEL.UNITS

Dimensions

Dimensions

A

Overall Length

43.34ft in

C

Overall Height

12.08ft in

D

Wheelbase

26.19ft in

Height - Top Of Cab

11.09ft in

Length - Overall Machine

523in

Rear Axle - Rear Of Machine

86in

Rim Radius

17in

Wheel Base

26.17ft in

Width - Inside Of Bowl

116in

Width - Outside Rear Tires

120in

Width - Overall Machine

140in

Width - Rear Tire Center Lines

87in

Front Of Tractor To Front Axle

17in

Width - Tractor

117in

Height - Overall Shipping

140in

Height - Scraper Blade Maximum

16in


Specifications

Tractor Engine

Model

3406CTA

Gross Power

365hp

Engine

Net Power

365hp

Displacement

893cu in

Bore

5.4in

Stroke

6.5in

Eec 80/1269

365hp

Sae J1349

361hp

Iso 9249

365hp

Din 70020

378 PS

Tractor Engine

3406C

Gross Power - Gears 1-2

383hp

Net Power - Gears 1-2

365hp

Caterpillar Net Power

365hp

Scraper Engine

Displacement

891cu in

Operational

Fuel Capacity

160.1gal

Transmission

Max Speed Forward

29.9mph

Reverse

5.4 mile/h

Steering

Width - 180 Degrees Turn

35.8ft in

Steering Angle - Right

90 Degrees

Steering Angle - Left

85 Degrees

Hydraulic Output

52 gal/min

Transmission

1 Forward

3.1mph

2 Forward

5.6mph

3 Forward

7.1mph

4 Forward

9.6mph

5 Forward

12.9mph

6 Forward

17.5mph

7 Forward

23.6mph

8 Forward

31.9mph

Steering

Ground-Driven Secondary Steering System

39.9 gal/min

Weights

Total Operating - Empty

81250lb

Total Shipping

80231lb

Tractor Shipping

52050lb

Scraper Shipping

29200lb

Front Axle

52050lb

Rear Axle

29200lb

Front Axle Weight - Loaded

69985lb

Rear Axle - Weight - Loaded

68760lb

Bowl

Rated Payload

55201.6lb

Heaped Capacity

23.1yd3

Struck Capacity

18.1yd3

Max Depth Of Cut

13in

Width Of Cut

11.5ft in

Elevator

Number Of Flights

15

Width - Flight Face

8.5in

Length - Flights

89in

Spacing Of Flights

20in

Length - Overall

146.9in

Service Refill Capacities

Cooling System

22gal

Fuel Tank

160gal

Crankcase

9.5gal

Final Drive - Each

5gal

Transmission

19gal

Differential

43gal

Hydraulic Reservoir

37gal

Wheel Coolant - Each

12gal

Hydraulics

Bowl Cylinder Bore

6in

Bowl Cylinder Stroke

20in

Floor Cylinder Bore

6in

Floor Cylinder Stroke

53.3in

Steering Circuit

56 gal/min

Scraper Circuit

62.2 gal/min

Cushion Hitch Circuit

8.6 gal/min

Supplemental Steering Circuit

37 gal/min

Relief Valve - Steering Circuit

2250 psi

Relief Valve - Implement Circuit

2500 psi

Compensator Settings - Cushion Hitch Circuit

2300 psi

Compensator Settings - Elevator Circuit

5250 psi

Ejector Cylinder Bore

5in

Ejector Cylinder Stroke

47.8in

Scraper Bowl

Hydraulic Penetration Force

33750lb

Width - Cut - To Router Bits

11.5in

Rated Load

55000lb

Capacity - Struck

18yd3

Depth Of Cut - Maximum

13in

Ground Clearance - Maximum

15.3in

Cutting Edge Thickness

1.4in

Depth Of Spread - Maximum

15in

Scraper Capacity - Heaped

23yd3
