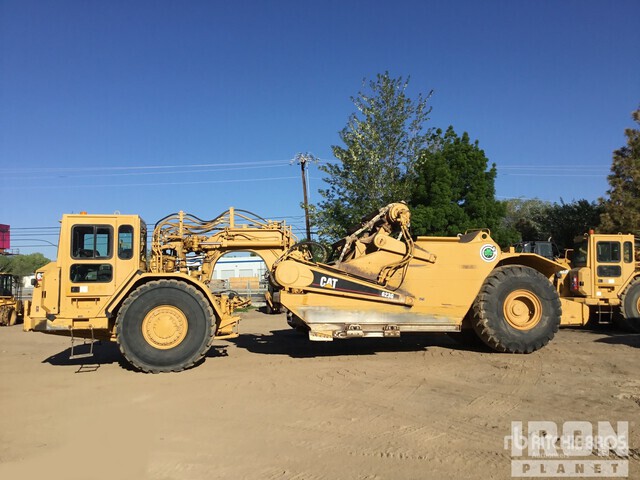

Caterpillar 623G Motor Scraper

Caterpillar 623G Motor Scraper Specs front
Caterpillar 623G Motor Scraper Specs front
Caterpillar 623G Motor Scraper Specs side
Caterpillar 623G Motor Scraper Specs side
Caterpillar 623G Motor Scraper Specs back
Caterpillar 623G Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

43.34 ft in

B

Overall Width

11.67 ft in

C

Overall Height

12.17 ft in

D

Wheelbase

26.17 ft in

E

Tractor Ground Clearance

1.82 ft in

F

Height to Top of Cab

11.24 ft in


Specifications

Tractor Engine

Make

Caterpillar

Model

C15 with ACERT technology

Gross Power

359 hp

Net Power

330 hp

Displacement

928 cu in

Operational

Fuel Capacity

160 gal

Cooling System Fluid Capacity

28 gal

Engine Oil Fluid Capacity

9.5 gal

Transmission Fluid Capacity

19 gal

Differential Fluid Capacity

38 gal

Hydraulic System Fluid Capacity

37 gal

Wheel Coolant Fluid Capacity - each

12 gal

Transmission

Number of Forward Gears

8

Number of Reverse Gears

1

Max Speed Forward

32 mph

Max Speed Reverse

5.7 mph

Weights

Total Operating - empty

82530 lb

Front Axle - empty

52819 %

Rear Axle - empty

29711 %

Total Operating - Loaded

137646 lb

Front Axel - loaded

68823 lb

Rear Axle - loaded

68823 %

Bowl

Heaped Capacity

23.1 yd3

Max Depth of Cut

13 in

Width of Cut

11.5 ft in

Dimensions

Overall Length

43.4 ft in

Overall Width

11.7 ft in

Height to Top of Cab

11.3 ft in

Overall Height

12.2 ft in

Wheelbase

26.2 ft in

Tractor Ground Clearance

1.9 ft in
