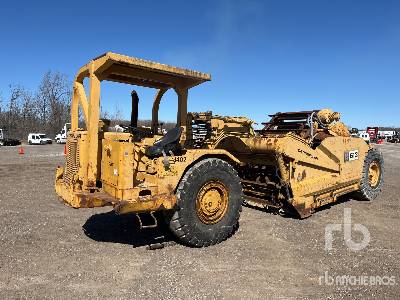

Caterpillar 623G Elevating Motor Scraper
Units
Dimensions
Dimensions
A
Overall Length
43.33ft in
B
Overall Width
11.67ft in
C
Overall Height
12.17ft in
D
Wheelbase
26.17ft in
E
Tractor Ground Clearance
1.82ft in
Height To Top Of Suspended Cab
11.23ft in
Specifications
Tractor Engine
Make
Caterpillar
Model
C15 ACERT
Gross Power
394hp
Net Power
365hp
Displacement
928cu in
Operational
Fuel Capacity
160gal
Cooling System Fluid Capacity
28gal
Engine Oil Capacity
9.5gal
Transmission Fluid Capacity
19gal
Differential Fluid Capacity
38gal
Hydraulic System Fluid Capacity
37gal
Wheel Coolant Fluid Capacity - Each
12gal
Operating Voltage
24V
Alternator Supplied Amperage
75amps
Tire Size
33.25-R29
Transmission
Transmission Type
8-speed automatic Powershift with Electronic Control
Number Of Forward Gears
8
Number Of Reverse Gears
1
Max Speed Forward
32mph
Max Speed Reverse
5.7mph
Weights
Total Operating - Empty
82530lb
Front Axle - Empty
52819%
Rear Axle - Empty
29711%
Total Operating - Loaded
137646lb
Front Axel - Loaded
68823lb
Rear Axle - Loaded
68823%
Bowl
Rated Payload
55115lb
Heaped Capacity
23yd3
Struck Capacity
18yd3
Max Depth Of Cut
13in
Width Of Cut
11.5ft in
Elevator
Width Of Flight Face
8.5in
Length Of Flights
7.5ft in
Number Of Flights
15
