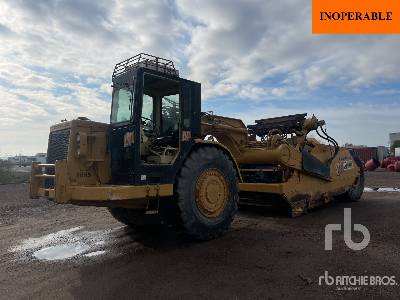

Caterpillar 623B Motor Scraper

Caterpillar 623B Motor Scraper Specs front
Caterpillar 623B Motor Scraper Specs front
Caterpillar 623B Motor Scraper Specs side
Caterpillar 623B Motor Scraper Specs side
Caterpillar 623B Motor Scraper Specs back
Caterpillar 623B Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

41.08 ft in

B

Overall Width

11.67 ft in

C

Overall Height

12.5 ft in

D

Wheelbase

26.17 ft in

F

Height to Top of Cab

- -


Specifications

Tractor Engine

Model

3406

Net Power

330 hp

Power Measured @

1900 rpm

Displacement

891 cu in

Operational

Fuel Capacity

135 gal

Tire Size

29.5x29 28PR

Transmission

Max Speed Forward

30 mph

Weights

Total Operating - empty

71165.3 lb

Bowl

Heaped Capacity

22 yd3

Max Depth of Cut

13 in

Width of Cut

10.4 ft in

Dimensions

Overall Length

41.1 ft in

Overall Width

11.7 ft in

Overall Height

12.5 ft in

Wheelbase

26.2 ft in
