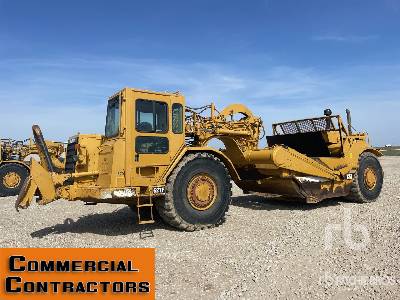

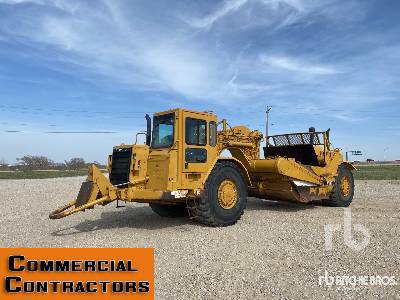

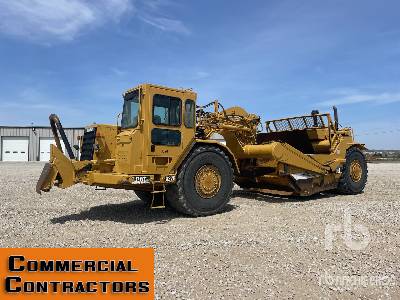

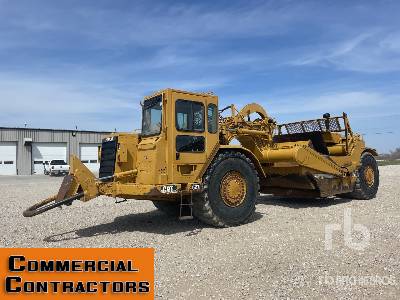

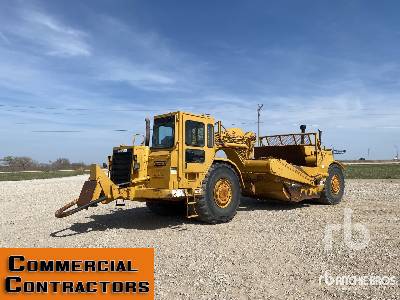

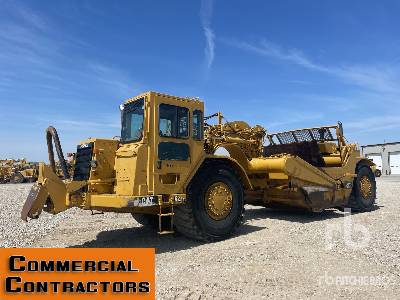

Caterpillar 621E Motor Scraper

Caterpillar 621E Motor Scraper Specs front
Caterpillar 621E Motor Scraper Specs front
Caterpillar 621E Motor Scraper Specs side
Caterpillar 621E Motor Scraper Specs side
Caterpillar 621E Motor Scraper Specs back
Caterpillar 621E Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

42.43 ft in

B

Overall Width

11.39 ft in

D

Wheelbase

25.33 ft in

F

Height to Top of Cab

12.18 ft in


Specifications

Tractor Engine

Make

Caterpillar

Model

3406

Gross Power

330 hp

Displacement

891 cu in

Operational

Fuel Capacity

144 gal

Tire Size

33.25-29 26 PR (E-3)

Transmission

Number of Forward Gears

8

Max Speed Forward

31.7 mph

Weights

Total Operating - empty

67188.1 lb

Front Axle - empty

45686.4 %

Rear Axle - empty

21501.7 %

Total Operating - Loaded

115189.4 lb

Front Axel - loaded

61050.5 lb

Rear Axle - loaded

54139 %

Bowl

Rated Payload

47994.7 lb

Heaped Capacity

20.1 yd3

Struck Capacity

14 yd3

Max Depth of Cut

13.2 in

Width of Cut

10 ft in

Dimensions

Overall Length

42.5 ft in

Overall Width

11.4 ft in

Height to Top of Cab

12.2 ft in

Wheelbase

25.4 ft in
