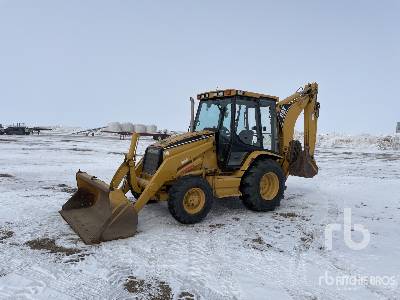

Caterpillar 438C Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
12.09ft in
K
Reach From Swivel - Std
18.74ft in
L
Dig Depth - Std
15.99ft in
M
Reach At Load Height - Std
5.45ft in
Dig Depth - Ext
19.44ft in
Reach At Load Height - Ext
8.52ft in
Reach From Swivel - Ext
22.17ft in
Load Height - Ext
14.26ft in
Dimensions
A
Transport Length
18.84ft in
B
Transport Width
7.87ft in
C
Transport Height
12.36ft in
D
Wheelbase
6.89ft in
E
Ground Clearance
1.1ft in
Height To Top Of Suspended Cab
9.52ft in
Loader
G
Clearance At Max Dump Height
8.72ft in
H
Reach At Max Dump Height
2.56ft in
I
Dig Depth
1.58in
Bucket Width
94.34in
Bucket Capacity
1.31yd3
Bucket Breakout Force
11330.37lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054
Gross Power
89hp
Net Power
85hp
Power Measured @
2200rpm
Net Torque Rise
24.1%
Aspiration
Turbocharged
Displacement
244.1cu in
Operational
Fuel Capacity
33.9gal
Operating Weight 4wd
16667lb
Hydraulic System Fluid Capacity
20.9gal
Oil System Fluid Capacity
2gal
Cooling System Fluid Capacity
5.8gal
Transmission Fluid Capacity
4.8gal
Front Axle Fluid Capacity
2gal
Rear Axle Fluid Capacity
6.4gal
Turning Radius
26.6ft in
Tire Size Front - 2wd / 4wd
335/80 x R18
Rear Tires Size 2wd/4wd
16.9 x R28
Operating Voltage
12V
Alternator Supplied Amperage
52amps
Transmission
Transmission Type
Power Shuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
19.6mph
Max Speed Reverse
19.6mph
Hydraulic
Pump Type
Piston
Pump Flow Capacity
42.8gal/min
Relief Valve Pressure
3000psi
