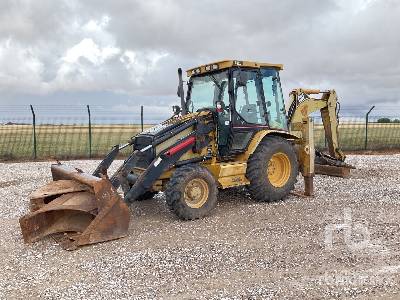

Caterpillar 432D Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
12.18ft in
K
Reach From Swivel - Std
18.5ft in
L
Dig Depth - Std
15.93ft in
M
Reach At Load Height - Std
5.72ft in
Bucket Dig Force - Std
14710lb
Bucket Dig Force - Ext
14580lb
Reach From Swivel - Ext
21.87ft in
Dig Depth - Ext
19.34ft in
Reach At Load Height - Ext
9.02ft in
Load Height - Ext
14.03ft in
Dimensions
A
Transport Length
18.9ft in
B
Transport Width
7.87ft in
C
Transport Height
12.28ft in
D
Wheelbase
6.89ft in
E
Ground Clearance
1.05ft in
Height To Top Of Suspended Cab
9.52ft in
Loader
G
Clearance At Max Dump Height
8.58ft in
H
Reach At Max Dump Height
2.51ft in
I
Dig Depth
3.04in
Lift Capacity At Full Height
7645.64lb
Bucket Capacity
1.31yd3
Bucket Width
94.34in
Bucket Breakout Force
11285.41lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3054T
Net Power
85hp
Gross Power
88hp
Power Measured @
2200rpm
Displacement
244.1cu in
Operational
Fuel Capacity
33.9gal
Operating Weight 4wd
17215.9lb
Turning Radius
17.6ft in
Tire Size Front - 2wd / 4wd
12.5/80x18,10PR
Rear Tires Size 2wd/4wd
16.9x28,10PR
Transmission
Transmission Type
power shuttle
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
19.8mph
Max Speed Reverse
19.8mph
Hydraulic
Pump Type
LSPC, closed center
Pump Flow Capacity
43.1gal/min
Relief Valve Pressure
3306.9psi
