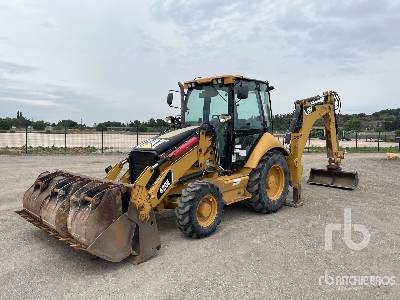

Caterpillar 428E Loader Backhoe

Caterpillar 428E Loader Backhoe Specs front
Caterpillar 428E Loader Backhoe Specs front
Caterpillar 428E Loader Backhoe Specs side
Caterpillar 428E Loader Backhoe Specs side
Caterpillar 428E Loader Backhoe Specs extended
Caterpillar 428E Loader Backhoe Specs extended
Units

Dimensions

Backhoe

J

Load Height - Std

12.29 ft in

K

Reach From Swivel - Std

18.34 ft in

L

Dig Depth - Std

16.25 ft in

Dimensions

A

Transport Length

19.07 ft in

B

Transport Width

7.72 ft in

C

Transport Height

12.2 ft in

D

Wheelbase

7.22 ft in

Loader

G

Clearance at Max Dump Height

8.76 ft in

I

Dig Depth

3.59 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054C

Net Power

91 hp

Gross Power

94 hp

Power Measured @

2200 rpm

Net Torque Rise

35 %

Displacement

268.6 cu in

Operational

Operating Weight 4wd

16689 lb

Max Weight

22487.2 lb

Fuel Capacity

38.4 gal

Hydraulic System Fluid Capacity

10.1 gal

Cooling System Fluid Capacity

4.3 gal

Transmission Fluid Capacity

4.9 gal

Front Axle Fluid Capacity

3 gal

Rear Axle Fluid Capacity

4.4 gal

Turning Radius

17.8 ft in

Backhoe

Dig Depth - Std

16.3 ft in

Dig Depth - Ext

19.7 ft in

Reach From Swivel - Std

18.4 ft in

Load at Max Lift - Std

8252 lb

Load at Max Lift - Ext

9374.1 lb

Load Height - Std

12.3 ft in

Load Height - Ext

14 ft in

Transmission

Transmission Type

Caterpillar Power-Shuttle

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24.9 mph

Max Speed Reverse

24.9 mph

Loader

Bucket Capacity

1.3 yd3

Bucket Width

89.1 in

Bucket Breakout Force

11240.5 lb

Lift Capacity at Full Height

7315 lb

Clearance at Max Dump Height

8.8 ft in

Dig Depth

3.6 in

Hydraulic

Pump Type

Variable-Flow, Axial-Piston

Pump Flow Capacity

33.1 gal/min

Relief Valve Pressure

227 psi

Dimensions

Transport Length

19.1 ft in

Transport Width

7.8 ft in

Transport Height

12.2 ft in

Height to Top of Suspended Cab

9.4 ft in

Wheelbase

7.3 ft in
