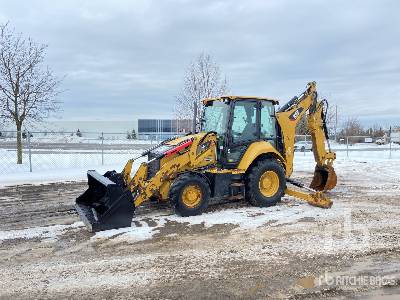

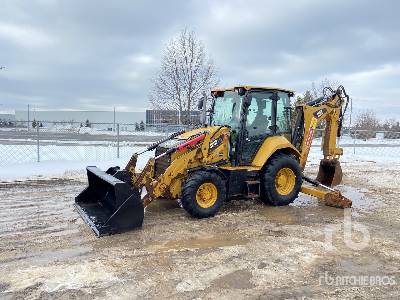

Caterpillar 428C Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

12.48ft in

K

Reach From Swivel - Std

18.31ft in

L

Dig Depth - Std

15.64ft in

M

Reach at Load Height - Std

5.38ft in

Dimensions

A

Transport Length

18.9ft in

B

Transport Width

7.87ft in

C

Transport Height

12.28ft in

D

Wheelbase

6.89ft in

E

Ground Clearance

1.05ft in

Loader

G

Clearance at Max Dump Height

8.44ft in

H

Reach at Max Dump Height

2.7ft in

I

Dig Depth

5.32in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054

Net Power

78hp

Gross Power

75hp

Power Measured @

2200rpm

Net Torque Rise

15.2%

Aspiration

Natural

Displacement

244.1cu in

Operational

Operating Weight 2wd

13889.2lb

Max Weight

21384.9lb

Fuel Capacity

33.9gal

Hydraulic System Fluid Capacity

20.9gal

Oil System Fluid Capacity

2gal

Cooling System Fluid Capacity

5gal

Transmission Fluid Capacity

4gal

Rear Axle Fluid Capacity

6.4gal

Turning Radius

26.6ft in

Tire Size Front - 2wd / 4wd

11 x 16 / 10.5 x 20

Rear Tires Size 2wd/4wd

16.9 x 28

Operating Voltage

12V

Alternator Supplied Amperage

52amps

Transmission

Transmission Type

Power Shuttle

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

19.8mph

Max Speed Reverse

19.8mph

Backhoe

Dig Depth - Std

15.7ft in

Dig Depth - Ext

19.2ft in

Reach From Swivel - Std

18.4ft in

Reach From Swivel - Ext

21.8ft in

Load Height - Std

12.5ft in

Load Height - Ext

14.7ft in

Reach at Load Height - Std

5.4ft in

Reach at Load Height - Ext

8.5ft in

Loader

Bucket Capacity

1.4yd3

Bucket Width

94.4in

Clearance at Max Dump Height

8.5ft in

Reach at Max Dump Height

2.7ft in

Dig Depth

5.4in

Hydraulic

Pump Type

Piston

Pump Flow Capacity

43.1gal/min

Relief Valve Pressure

3002.3psi

Dimensions

Transport Length

18.9ft in

Transport Width

7.9ft in

Transport Height

12.3ft in

Height to Top of Suspended Cab

9.6ft in

Wheelbase

6.9ft in

Ground Clearance

1.1ft in
