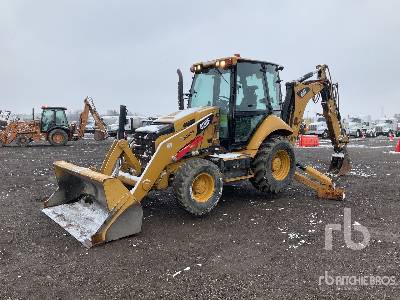

Caterpillar 416E Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

11.9ft in

K

Reach From Swivel - Std

18.4ft in

L

Dig Depth - Std

14.3ft in

M

Reach at Load Height - Std

5.8ft in

Dimensions

A

Transport Length

23.58ft in

B

Transport Width

8ft in

C

Transport Height

11.75ft in

D

Wheelbase

7.25ft in

Loader

G

Clearance at Max Dump Height

8.67ft in

H

Reach at Max Dump Height

2.53ft in

I

Dig Depth

4in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054C DINA

Net Power

74hp

Gross Power

78hp

Power Measured @

2200rpm

Net Torque Rise

27%

Net Max Torque

219lb ft

Bore

4.2in

Stroke

5in

Displacement

268cu in

Net Power - ISO 9249

88hp

Net Power - SAE J1349

87hp

Gross Power - SAE J1995

96hp

Gross Power - ISO 14396

94hp

Net Power - EEC 80/1269

88hp

Net Torque Rise - 1,400 rpm - Standard

35 %

Engine Model - Standard

Cat C4.4 DITA

Net Peak Torque - 1400 rpm - Standard - SAE J1349

283lb ft

Net Peak Power - 2,000 rpm - SAE J1349

89hp

Net Peak Power - 2,000 rpm - ISO 9249

90hp

Net Peak Power - 2,000 rpm - EEC 80/1269

90hp

Operational

Operating Weight 2wd

14960lb

Max Weight

22466lb

Fuel Capacity

38gal

Hydraulic System Fluid Capacity

21gal

Oil System Fluid Capacity

2gal

Cooling System Fluid Capacity

4.4gal

Transmission Fluid Capacity

4.9gal

Front Axle Fluid Capacity

2.9gal

Rear Axle Fluid Capacity

4.4gal

Turning Radius

17.7ft in

Tire Size Front - 2wd / 4wd

11L-16 (12 ply) F-3 / 335/80R 18 XM37

Rear Tires Size 2wd/4wd

19.5L-24 (12 ply) R4 ATU / 19.5L-R24 XM37

Operating Voltage

12V

Power Train

Power Shuttle Transmission - Forward 1st

3.7mph

Forward - 2nd

5.9mph

Forward - 3rd

12mph

Forward - 4th

25mph

Power Shuttle Transmission - Reverse 1st

3.7mph

Reverse - 2nd

5.9mph

Reverse - 3rd

12mph

Reverse - 4th

25mph

Transmission

Transmission Type

power-shuttle

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24.8mph

Max Speed Reverse

24.8mph

Backhoe

Dig Depth - Std

14.3ft in

Dig Depth - Ext

17.9ft in

Reach From Swivel - Std

18.4ft in

Reach From Swivel - Ext

21.9ft in

Bucket Dig Force - Std

11655lb

Bucket Dig Force - Ext

11491lb

Load at Max Lift - Std

2838lb

Load at Max Lift - Ext

1712lb

Load Height - Std

11.9ft in

Load Height - Ext

13.6ft in

Reach at Load Height - Std

5.8ft in

Reach at Load Height - Ext

9.1ft in

E-Stick Retracted (2)

18.6ft in

Bucket Rotation

205degrees

Bucket Dig Force - Standard

11749lb

Dig Depth - Standard

14.3ft in

E-Stick Extended (1)

17.9ft in

Reach from Swing Pivot - Standard

18.5ft in

E-Stick Retracted (3)

11491lb

E-Stick Extended (3)

11491lb

Stick Dig Force - Standard

7200lb

E-Stick Retracted (4)

7200lb

E-Stick Extended (4)

5250lb

Stick Lift at 2440 mm (8 ft) - Standard

5005lb

E-Stick Retracted (5)

4539lb

E-Stick Extended (5)

2839lb

E-Stick Retracted (1)

14.5ft in

Loading Height - Standard

11.9ft in

Loading Reach - Standard

6ft in

E-Stick Extended (2)

21.9ft in

E-Stick Retracted (6)

11.8ft in

E-Stick Extended (6)

13.6ft in

E-Stick Retracted (7)

6.2ft in

E-Stick Extended (7)

9.1ft in

Weights

Operating Weight - Maximum

22466lb

Operating Weight - Nominal

14881lb

Cab - ROPS/FOPS

573lb

Ride Control

55lb

Counterweights - Option 1

255lb

Counterweights - Option 2

510lb

Counterweights - Option 3

1075lb

Air Conditioning

86lb

Four Wheel Drive

342lb

Extendible Stick - No Weights

659lb

Loader

Bucket Capacity

1yd3

Bucket Width

7.5in

Bucket Breakout Force

9185lb

Lift Capacity at Full Height

5615lb

Clearance at Max Dump Height

8.7ft in

Reach at Max Dump Height

2.6ft in

Dig Depth

4in

Bucket Capacity - General Purpose

1yd3

Bucket Width - General Purpose

7.42 ft

Dig Depth - Single Tilt

4in

Bucket Breakout Force - Single Tilt

10036lb

Dump Height at Maximum Angle - Single Tilt

8.7ft in

Dump Reach at Maximum Angle - Single Tilt

2.5ft in

Lift Capacity at Full Height - Single Tilt

6180lb

Hydraulic System

Stroke

0.4ft in

Pump Type

Variable-flow, axial piston

Circuit Type

Closed center, load sensing

Pump Capacity at 2,200 rpm

34.8 gal/min

Steering Type

Front wheel

Power Steering

Hydrostatic, HMU

Rod Diameter

1.4 in

4WD Cylinder - Bore

2.6 in

Brake System

Inboard, oil-immersed, multiple disc

System Pressure - Loader

3000 psi

2WD Cylinder - Bore

2.6in

System Pressure - Backhoe

3300 psi

Hydraulic

Pump Type

variable-flow, axial piston

Pump Flow Capacity

34.8gal/min

Relief Valve Pressure

3292psi

Dimensions

Transport Length

23.6ft in

Transport Width

8ft in

Transport Height

11.8ft in

Height to Top of Suspended Cab

9.3ft in

Wheelbase

7.3ft in

Standards

Cab - FOPS

SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II

Cab - ROPS

SAE J1040 May 1994/ISO 3741 1994

Brakes

SAE J/ISO 3450, ISO 3450 1996

Cab - Sound

ANSI/SAE J1166 Oct 98 is 80 dB (A)

Exterior Sound

SAE J88 JUN86 is 76 dB (A)

Axle Ratings

Dynamic

20233lb

Front Axle (4WD) - Static

50582lb

Rear Axle - Static

50582lb

Front Axle (2WD) - Static

50582lb

Service Refill

Fuel Tank

45gal

Engine Oil - With Filter

2gal

Transmission - Torque Converter - Power Shuttle - 4WD

4.9gal

Rear Axle

4.4gal

Rear Axle - Planetaries

0.4gal

Front Axle (4WD)

2.9gal

Front Axle - Planetaries

0.2gal

Hydraulic System

23.8gal

Hydraulic Tank

10gal

Cooling System

5.4gal

Transmission - Torque Converter - Power Shuttle - 2WD

4.9gal

Operating Specifications - Backhoe

Turning Circle - Outside - Front Wheels

26.8ft in

Turning Circle - Outside, Widest Loading Bucket

36ft in
