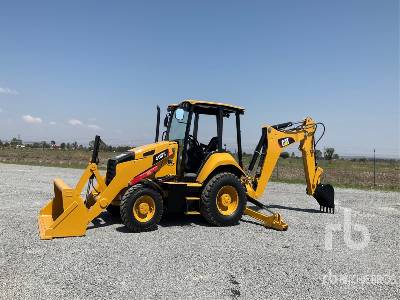

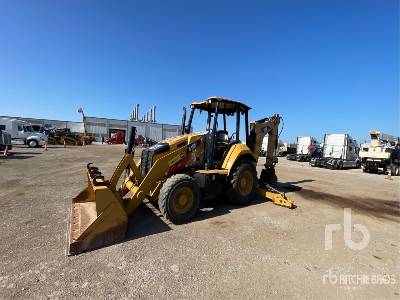

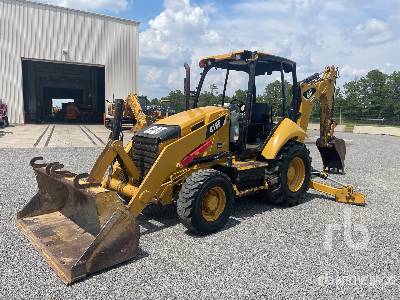

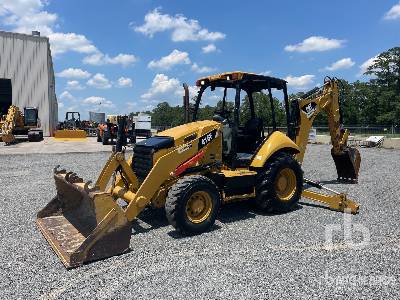

Caterpillar 416F Loader Backhoe

Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Loader Backhoe
Units

Dimensions

Backhoe

J

Load Height - Std

11.9 ft in

K

Reach From Swivel - Std

18.43 ft in

L

Dig Depth - Std

14.3 ft in

M

Reach at Load Height - Std

6 ft in

Loader

H

Reach at Max Dump Height

9.25 ft in

I

Dig Depth

3 in


Specifications

Engine

Engine Make

2236

Engine Model

416F

Net Power

87 hp

Gross Power

97 hp

Power Measured @

1800 rpm

Torque Measured @

1400 rpm

Net Torque Rise

37 %

Net Max Torque

299 lb ft

Bore

4.2 in

Stroke

5 in

Displacement

268 cu in

Net Power - ISO 9249

88 hp

Net Power - SAE J1349

87 hp

Gross Power - SAE J1995

97 hp

Gross Power - ISO 14396

94 hp

Net Power - EEC 80/1269

88 hp

Net Peak Power - 1,800 rpm - SAE J1349

90 hp

Net Peak Power - 1,800 rpm - ISO 9249

91 hp

Net Torque Rise - 1,400 rpm - Standard

37 %

Net Peak Power - 1,800 rpm - EEC 80/1269

91 hp

Engine Model - Standard

Cat C4.4 ACERT DIT

Net Peak Torque - 1400 rpm - Standard - SAE J1349

299 lb ft

Operational

Max Weight

24251 lb

Fuel Capacity

45 gal

Hydraulic System Fluid Capacity

23.8 gal

Cooling System Fluid Capacity

5.8 gal

Power Train

Power Shuttle Transmission - Forward 1st

3.7 mph

Power Shuttle Transmission - Reverse 1st

3.7 mph

Power Shuttle Transmission - Forward 2nd

5.9 mph

Power Shuttle Transmission - Forward 3rd

12 mph

Power Shuttle Transmission - Forward 4th

25 mph

Power Shuttle Transmission - Reverse 2nd

5.9 mph

Power Shuttle Transmission - Reverse 3rd

12 mph

Power Shuttle Transmission - Reverse 4th

25 mph

Backhoe

Dig Depth - Std

14.3 ft in

Dig Depth - Ext

17.9 ft in

Reach From Swivel - Std

18.5 ft in

Reach From Swivel - Ext

21.9 ft in

Bucket Dig Force - Std

12973 lb

Bucket Dig Force - Ext

12791 lb

Load Height - Std

11.9 ft in

Load Height - Ext

13.6 ft in

Reach at Load Height - Std

6 ft in

Reach at Load Height - Ext

9.3 ft in

Bucket Rotation

205 degrees

Bucket Dig Force - Standard

12973 lb

Dig Depth - Standard

14.3 ft in

Reach from Swing Pivot - Standard

18.5 ft in

Stick Dig Force - Standard

7279 lb

Loading Height - Standard

11.9 ft in

Loading Reach - Standard

6 ft in

Loading Height - E-Stick Retracted

11.8 ft in

Loading Reach - E-Stick Retracted

6.3 ft in

Loading Height - E-Stick Extended

13.6 ft in

Loading Reach - E-Stick Extended

9.3 ft in

Dig Depth - E-Stick Extended

17.9 ft in

Dig Depth - E-Stick Retracted

14.5 ft in

Reach from Swing Pivot - E-Stick Retracted

18.6 ft in

Reach from Swing Pivot - E-Stick Extended

21.9 ft in

Bucket Dig Force - E-Stick Retracted

12791 lb

Bucket Dig Force - E-Stick Extended

12791 lb

Stick Dig Force - E-Stick Retracted

7289 lb

Stick Dig Force - E-Stick Extended

5350 lb

Weights

Operating Weight - Maximum

24251 lb

Operating Weight - Nominal

14881 lb

Cab - ROPS/FOPS

573 lb

Counterweights - Option 1

255 lb

Counterweights - Option 2

530 lb

Counterweights - Option 3

1015 lb

Air Conditioning

86 lb

Four Wheel Drive

342 lb

Extendible Stick - No Weights

659 lb

Loader

Bucket Capacity

1 yd3

Bucket Width

7.5 in

Bucket Breakout Force

10772 lb

Lift Capacity at Full Height

6751 lb

Reach at Max Dump Height

9.3 ft in

Dig Depth

3 in

Bucket Capacity - General Purpose

1 yd3

Bucket Width - General Purpose

7.42 ft

Dig Depth - Single Tilt

3 in

Bucket Breakout Force - Single Tilt

10772 lb

Dump Height at Maximum Angle - Single Tilt

9.3 ft in

Dump Reach at Maximum Angle - Single Tilt

2.5 ft in

Lift Capacity at Full Height - Single Tilt

6751 lb

Hydraulic System

Pump Type

Variable-flow, axial piston

Circuit Type

Closed center, load sensing

Pump Capacity at 2,200 rpm

34.8 gal/min

Steering Type

Front wheel

Power Steering

Hydrostatic, HMU

4WD Cylinder - Bore

2.6 in

Brake System

Inboard, oil-immersed, multiple disc

System Pressure - Loader

3300 psi

2WD Cylinder - Bore

2.6 in

System Pressure - Backhoe

3300 psi

2WD Cylinder - Stroke

4.7 in

2WD Cylinder - Rod Diameter

1.4 in

4WD Cylinder - Stroke

4.7 in

4WD Cylinder - Rod Diameter

1.4 in

Hydraulic

Pump Type

Variable-flow, axial piston

Pump Flow Capacity

34.8 gal/min

Standards

Cab - FOPS

SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II

Cab - ROPS

SAE J1040 May 1994/ISO 3741 1994

Brakes

SAE J/ISO 3450, ISO 3450 1996

Cab - Sound

ANSI/SAE J1166 Oct 98 is 80 dB (A)

Exterior Sound

SAE J88 JUN86 is 76 dB (A)

Axle Ratings

Front Axle (4WD) - Static

50582 lb

Rear Axle - Static

50582 lb

Front Axle (2WD) - Static

50582 lb

Front Axle (2WD) - Dynamic

20233 lb

Front Axle (4WD) - Dynamic

20233 lb

Rear Axle - Dynamic

20233 lb

Service Refill

Fuel Tank

45 gal

Engine Oil - With Filter

2 gal

Transmission - Torque Converter - Power Shuttle - 4WD

4.9 gal

Rear Axle

4.4 gal

Rear Axle - Planetaries

0.4 gal

Front Axle (4WD)

2.9 gal

Front Axle - Planetaries

0.2 gal

Hydraulic System

23.8 gal

Hydraulic Tank

11.1 gal

Cooling System

5.8 gal

Transmission - Torque Converter - Power Shuttle - 2WD

4.9 gal

Operating Specifications - Backhoe

Turning Circle - Outside - Front Wheels

26.8 ft in

Turning Circle - Outside, Widest Loading Bucket

36 ft in
