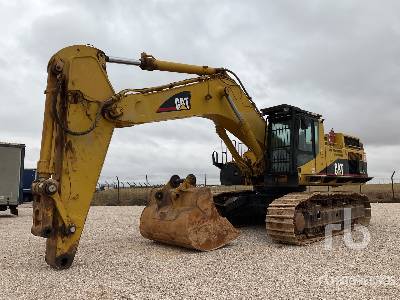

Caterpillar 385C L Hydraulic Excavator

Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Hydraulic Excavator
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

44.2ft in

C

Shipping Height of Unit

15.69ft in

I

Max Cutting Height

41.14ft in

J

Max Loading Height

26.45ft in

K

Max Reach Along Ground

40.3ft in

L

Max Vertical Wall Digging Depth

15.25ft in

M

Max Digging Depth

23.43ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

44.21ft in

C

Shipping Height of Unit

16.22ft in

I

Max Cutting Height

41.6ft in

J

Max Loading Height

27.02ft in

K

Max Reach Along Ground

41.68ft in

L

Max Vertical Wall Digging Depth

16.14ft in

M

Max Digging Depth

24.99ft in

Boom/Stick Option (HEX) 3

A

Shipping Length of Unit

48.01ft in

C

Shipping Height of Unit

16.28ft in

I

Max Cutting Height

44.56ft in

J

Max Loading Height

30.29ft in

K

Max Reach Along Ground

45.31ft in

L

Max Vertical Wall Digging Depth

19.28ft in

M

Max Digging Depth

28.05ft in

Boom/Stick Option (HEX) 4

A

Shipping Length of Unit

47.91ft in

C

Shipping Height of Unit

16.89ft in

I

Max Cutting Height

43.63ft in

J

Max Loading Height

31.24ft in

K

Max Reach Along Ground

47.51ft in

M

Max Digging Depth

30.85ft in

Boom/Stick Option (HEX) 5

A

Shipping Length of Unit

47.24ft in

C

Shipping Height of Unit

18.82ft in

I

Max Cutting Height

45.14ft in

J

Max Loading Height

32.74ft in

K

Max Reach Along Ground

50.92ft in

M

Max Digging Depth

34.46ft in

Boom/Stick Option (HEX) 6

A

Shipping Length of Unit

53.06ft in

C

Shipping Height of Unit

17.58ft in

I

Max Cutting Height

49.02ft in

J

Max Loading Height

36.76ft in

K

Max Reach Along Ground

55.91ft in

M

Max Digging Depth

37.9ft in

Dimensions

B

Width to Outside of Tracks

11.49ft in

D

Length of Track on Ground

16.8ft in

E

Ground Clearance

2.92ft in

G

Height to Top of Cab

12.34ft in

H

Tail Swing Radius

15.06ft in

Undercarriage

F

Track Gauge

11.52ft in

N

Shoe Size

29.53in


Specifications

Engine

Engine Make

2236

Engine Model

C18 ACERT Technology

Gross Power

530hp

Net Power

530hp

Power Measured @

1800rpm

Displacement

1106cu in

Bore

5.8in

Stroke

7.2in

Net Power - ISO 9249

513hp

Net Power - SAE J1349

513hp

Engine Model

Cat C18 ACERT

Net Power - EEC 80/1269

513hp

Net Flywheel Power

513hp

Operational

Operating Weight

185475lb

Fuel Capacity

327.6gal

Cooling System Fluid Capacity

26.7gal

Hydraulic System Fluid Capacity

262.9gal

Engine Oil Capacity

17.2gal

Swing Drive Fluid Capacity

5.1gal

Hydraulic System Relief Valve Pressure

4641.3psi

Hydraulic Pump Flow Capacity

258.9gal/min

Swing Mechanism

Swing Speed

6.5rpm

Swing Torque

Undercarriage

Number of Shoes per Side

51

Shoe Size

29.6in

Number of Carrier Rollers per Side

3

Number of Track Rollers per Side

9

Max Travel Speed

2.8mph

Drawbar Pull

133086.9lb

Track Gauge

11.6ft in

Weights

Operating Weight

187360lb

Operating Weight - Long Undercarriage

187360lb

Operating Weight - Standard Undercarriage

187360lb

Buckets

Reference Bucket Capacity

3.9yd3

Maximum Bucket Capacity

7.1yd3

Hydraulic System

Pilot System - Maximum Flow

24 gal/min

Pilot System - Maximum Pressure

600 psi

Maximum Pressure - Travel

5080 psi

Maximum Pressure - Swing

3770 psi

Swing System - Maximum Flow

119 gal/min

Boom Cylinder - Bore

8.3in

Boom Cylinder - Stroke

77.4in

Stick Cylinder - Bore

8.7in

Stick Cylinder - Stroke

89.1in

Main System - Maximum Flow - Total

259 gal/min

Maximum Pressure - Equipment - Heavy Lift

5080 psi

Maximum Pressure - Equipment - Normal

4640 psi

HB Family Bucket Cylinder - Bore

7.9in

HB Family Bucket Cylinder - Stroke

57.1in

JB Family Bucket Cylinder - Stroke

62.4in

JB Family Bucket Cylinder - Bore

8.7in

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

Mass Boom 7250mm w/ stick 2900mm

Shipping Height of Unit

15.7ft in

Shipping Length of Unit

44.2ft in

Max Digging Depth

23.5ft in

Max Reach Along Ground

40.3ft in

Max Cutting Height

41.2ft in

Max Loading Height

26.5ft in

Max Vertical Wall Digging Depth

15.3ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

Mass Boom 7250mm w/ stick 3400mm

Shipping Height of Unit

16.3ft in

Shipping Length of Unit

44.3ft in

Max Digging Depth

25ft in

Max Reach Along Ground

41.7ft in

Max Cutting Height

41.6ft in

Max Loading Height

27.1ft in

Max Vertical Wall Digging Depth

16.2ft in

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3

GP Boom 8400mm / Stick 3400mm

Shipping Height of Unit

16.3ft in

Shipping Length of Unit

48.1ft in

Max Digging Depth

28.1ft in

Max Reach Along Ground

45.4ft in

Max Cutting Height

44.6ft in

Max Loading Height

30.3ft in

Max Vertical Wall Digging Depth

19.3ft in

Boom/Stick Option (HEX) 4

Boom/Stick Option (HEX) 4

GP Boom 8400mm / Stick 4400mm

Shipping Height of Unit

16.9ft in

Shipping Length of Unit

48ft in

Max Digging Depth

30.9ft in

Max Reach Along Ground

47.6ft in

Max Cutting Height

43.7ft in

Max Loading Height

31.3ft in

Max Vertical Wall Dig Depth

16.7ft in

Boom/Stick Option (HEX) 5

Boom/Stick Option (HEX) 5

GP Boom 8400mm / Stick 5500mm

Shipping Height of Unit

18.9ft in

Shipping Length of Unit

47.3ft in

Max Digging Depth

34.5ft in

Max Reach Along Ground

51ft in

Max Cutting Height

45.2ft in

Max Loading Height

32.8ft in

Max Vertical Wall Dig Depth

19.7ft in

Boom/Stick Option (HEX) 6

Boom/Stick Option (HEX) 6

Reach Boom 10000mm / Stick 5500mm

Shipping Height of Unit

17.6ft in

Shipping Length of Unit

53.1ft in

Max Digging Depth

37.9ft in

Max Reach Along Ground

56ft in

Max Cutting Height

49.1ft in

Max Loading Height

36.8ft in

Max Vertical Wall Dig Depth

20.7ft in

Dimensions

Width to Outside of Tracks

11.5ft in

Height to Top of Cab

12.4ft in

Ground Clearance

3ft in

Removal Counterweight Clearance

5.2ft in

Tail Swing Radius

15.1ft in

Length of Track on Ground

16.8ft in

Transport Width

12.6ft in

Shipping Height

19.3ft in

Operating Specifications

Bucket Digging Force

64530lb

Stick Digging Force

55350lb

Maximum Reach - Ground Level

56.4ft in

Maximum Bucket Capacity

7.1yd3

Maximum Digging Depth

38.6ft in

Bucket Digging Force - Normal

64530lb

Nominal Bucket Weight

6795lb

Service Refill Capacities

Cooling System

26.7gal

Final Drive - Each

5.6gal

Hydraulic Tank

214gal

Hydraulic System - Including Tank

263gal

Engine Oil

17.2gal

Fuel Tank Capacity

327.6gal

Swing Drive - Each

5gal

Standards

Brakes

SAE J1026 APR90

Cab/FOGS

SAE J1356 FEB88 ISO10262

Sound Performance

Performance

ANSI/SAE J1166 OCT98

Track

Number of Carrier Rollers - Each Side

3

Number of Track Rollers - Each Side - Long Undercarriage

9

Number of Shoes - Each Side - Long Undercarriage

51

Standard with Long Undercarriage

36in

Optional for Long Undercarriage

30in

Drive

Maximum Travel Speed

2.8mph

Maximum Drawbar Pull - Long Undercarriage

133090lb
