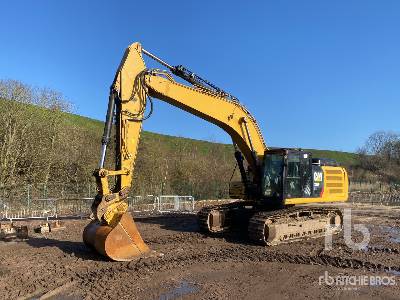

Caterpillar 336FL Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
36.62ft in
C
Shipping Height Of Unit
11.98ft in
I
Max Cutting Height
35.24ft in
J
Max Loading Height
24.61ft in
L
Max Vertical Wall Digging Depth
20.71ft in
M
Max Digging Depth
26.88ft in
Boom/Stick Option (Hex) 1
Boom - 6.50 m,21.4 ft in / Stick - R3.9DB (12.10 ft in )
Maximum Reach At Ground Level
38.46ft in
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
36.55ft in
I
Max Cutting Height
33.86ft in
C
Shipping Height Of Unit
11.49ft in
J
Max Loading Height
23.33ft in
L
Max Vertical Wall Digging Depth
18.05ft in
M
Max Digging Depth
24.58ft in
Boom/Stick Option (Hex) 2
Boom - 6.50 m,21.4 ft in / Stick - R3.2DB (10.6 ft in )
Maximum Reach At Ground Level
433.86in
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
35.6ft in
I
Max Cutting Height
32.71ft in
J
Max Loading Height
21.72ft in
C
Shipping Height Of Unit
11.91ft in
K
Max Reach Along Ground
33.67ft in
L
Max Vertical Wall Digging Depth
14.6ft in
M
Max Digging Depth
21.82ft in
Boom/Stick Option (Hex) 3
Mass Boom - 6.18 m, 20.3 ft in / stick - M2.55TB (8.4 ft in)
Dimensions
E
Ground Clearance
1.58ft in
G
Height To Top Of Cab
11.03ft in
B
Width To Outside Of Tracks
11.13ft in
H
Tail Swing Radius
11.36ft in
F
Track Gauge
8.5ft in
Gradeability
70%
Removal Counterweight Clearance
4.01ft in
Cab Height
124.41in
Track Length
198.04in
Undercarriage
Max Travel Speed
2.99mph
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
49
Drawbar Pull
66093.83lb
Number Of Carrier Rollers Per Side
2
Specifications
Engine
Engine Make
Cat
Engine Model
C15 ACERT
Net Power
313.8hp
Gross Power
319.2hp
Displacement
567.6cu in
Capacities
Swing Drive
5.1gal
Fuel Tank
163.8gal
Hydraulic Tank
46.3gal
Cooling System
11.4gal
Def Tank
10.9gal
Final Drive
2.2gal
Hydraulic System
100.4gal
Engine Oil
8.5gal
Swing Mechanism
Swing Speed
8.9rpm
Swing Torque
80394.3lb ft
