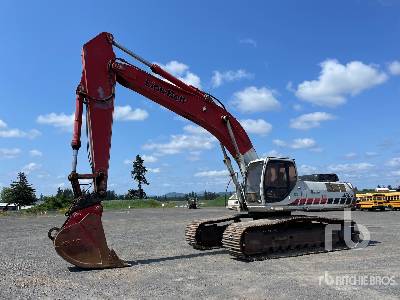

Link-Belt 460LX Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
39.34ft in
C
Shipping Height Of Unit
11.95ft in
I
Max Cutting Height
35.5ft in
J
Max Loading Height
24.35ft in
K
Max Reach Along Ground
36.06ft in
L
Max Vertical Wall Digging Depth
18.61ft in
M
Max Digging Depth
22.54ft in
Boom/Stick Option (Hex) 1
Boom 22\'11\" (6980mm) / Stick 8\'4\" (2530mm)
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
39.18ft in
I
Max Cutting Height
36.55ft in
C
Shipping Height Of Unit
11.82ft in
J
Max Loading Height
25.4ft in
K
Max Reach Along Ground
38.62ft in
L
Max Vertical Wall Digging Depth
21.56ft in
M
Max Digging Depth
25.33ft in
Boom/Stick Option (Hex) 2
Boom 22\'11\" (6980mm) / Stick 11\'1\" (3380mm)
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
39.11ft in
I
Max Cutting Height
37.21ft in
J
Max Loading Height
26.05ft in
C
Shipping Height Of Unit
11.82ft in
K
Max Reach Along Ground
40.46ft in
L
Max Vertical Wall Digging Depth
23.5ft in
M
Max Digging Depth
27.37ft in
Boom/Stick Option (Hex) 3
Boom 22\'11\" (6980mm) / Stick 13\'11\" (4000mm)
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
39.38ft in
C
Shipping Height Of Unit
14.41ft in
I
Max Cutting Height
38.92ft in
J
Max Loading Height
27.63ft in
K
Max Reach Along Ground
43.31ft in
M
Max Digging Depth
30.19ft in
Max Vertical Wall Dig Depth
26.97ft in
Boom/Stick Option (Hex) 4
Boom 22\'11\" (6980mm) / Stick 15\'11\" (4850mm)
Dimensions
E
Ground Clearance
1.78ft in
G
Height To Top Of Cab
10.96ft in
B
Width To Outside Of Tracks
11.98ft in
D
Length Of Track On Ground
14.44ft in
H
Tail Swing Radius
11.88ft in
Removal Counterweight Clearance
4.37ft in
Undercarriage
F
Track Gauge
9.03ft in
N
Shoe Size
35.44in
Max Travel Speed
3.3mph
Number Of Carrier Rollers Per Side
2
Number Of Shoes Per Side
50
Ground Pressure
7.69psi
Number Of Track Rollers Per Side
9
Specifications
Engine
Number Of Cylinders
6
Engine Make
2353
Engine Model
AA-6SD1XQB
Net Power
316hp
Power Measured @
1950rpm
Max Torque
940lb ft
Displacement
600cu in
Aspiration
Turbocharged with Intercooler
Torque Measured @
1600rpm
Operational
Operating Weight
101200lb
Fuel Capacity
161.2gal
Cooling System Fluid Capacity
12.1gal
Hydraulic System Fluid Capacity
118.9gal
Operating Voltage
24V
Engine Oil Capacity
8.8gal
Swing Drive Fluid Capacity
2.8gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4970psi
Hydraulic Pump Flow Capacity
190.2gal/min
Swing Mechanism
Swing Speed
9rpm
Swing Torque
110710lb ft
Buckets
Reference Bucket Capacity
2.2yd3
Minimum Bucket Capacity
1.6yd3
Maximum Bucket Capacity
4.1yd3
