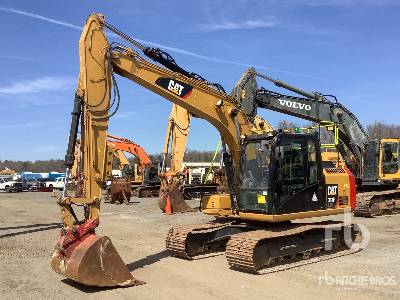

Caterpillar 313F L GC Hydraulic Excavator
Units
Dimensions
Dimensions
E
Ground Clearance
1.45ft in
G
Height To Top Of Cab
9.06ft in
D
Length Of Track On Ground
12.31ft in
H
Tail Swing Radius
7.16ft in
Removal Counterweight Clearance
2.89ft in
Undercarriage
Number Of Carrier Rollers Per Side
1
Max Travel Speed
5.5mph
Drawbar Pull
24706.51lb
Number Of Shoes Per Side
46
Number Of Track Rollers Per Side
7
Specifications
Engine
Engine Make
2236
Engine Model
C3.4B
Gross Power
74hp
Net Power
70hp
Displacement
207cu in
Bore
3.9in
Stroke
4.4in
Net Power - Sae J1349
70hp
Gross Power - Sae J1995
74hp
Engine Model
Cat C3.4B
Flywheel Power
70hp
Engine Rpm - Operation
1700rpm
Engine Rpm - Travel
1800rpm
Operational
Operating Weight
29101.1lb
Fuel Capacity
66.1gal
Cooling System Fluid Capacity
4.8gal
Hydraulic System Fluid Capacity
43.4gal
Engine Oil Capacity
2.2gal
Swing Drive Fluid Capacity
0.8gal
Swing Mechanism
Swing Torque
22791lb ft
Swing Speed
11.7rpm
Weights
Operating Weight
29300lb
Note
Long Undercarriage, Reach Boom, R3.0 (9'10") Stick, GD 0.53 m3 (0.69 yd3) Bucket and 500 mm (20 in) Shoes.
Maximum Operating Weight
32200lb
Minimum Operating Weight
29300lb
Blade
Blade Height
25.2in
Hydraulic System
Pilot System - Maximum Pressure
598 psi
Maximum Pressure - Travel
4424 psi
Maximum Pressure - Swing
3336 psi
Boom Cylinder - Bore
4in
Boom Cylinder - Stroke
40in
Stick Cylinder - Bore
5in
Stick Cylinder - Stroke
47in
Bucket Cylinder - Bore
4in
Bucket Cylinder - Stroke
37in
Main System - Maximum Flow - Total
63.4 gal/min
Maximum Pressure - Equipment
4424 psi
Blade
Maximum Lowering Depth From Ground
1.9ft in
Maximum Raising Height Above Ground
3.3ft in
Approach Angle
23.3 degrees
Service Refill Capacities
Cooling System
4.7gal
Hydraulic Tank
23.9gal
Hydraulic System - Including Tank
43.3gal
Engine Oil
2.1gal
Fuel Tank Capacity
66gal
Swing Drive
0.8gal
Final Drive
0.8gal
Sound
Iso 6396 - Inside Cab
72 dB(A)
Iso 6395 - Exterior
99 dB(A)
Standards
Cab - Rops
ISO 12117-2:2008
Brakes
ISO 10265
Cab - Opg (Operator Protective Guards)
ISO 10262:1998 Level 2 SAE J1356 MAR2013
Track
Number Of Carrier Rollers - Each Side
1 piece
Number Of Track Rollers - Each Side - Long Undercarriage
7 pieces
Number Of Shoes - Each Side - Long Undercarriage
46 pieces
Drive
Maximum Travel Speed
3.4mph
Maximum Drawbar Pull
24706lb
